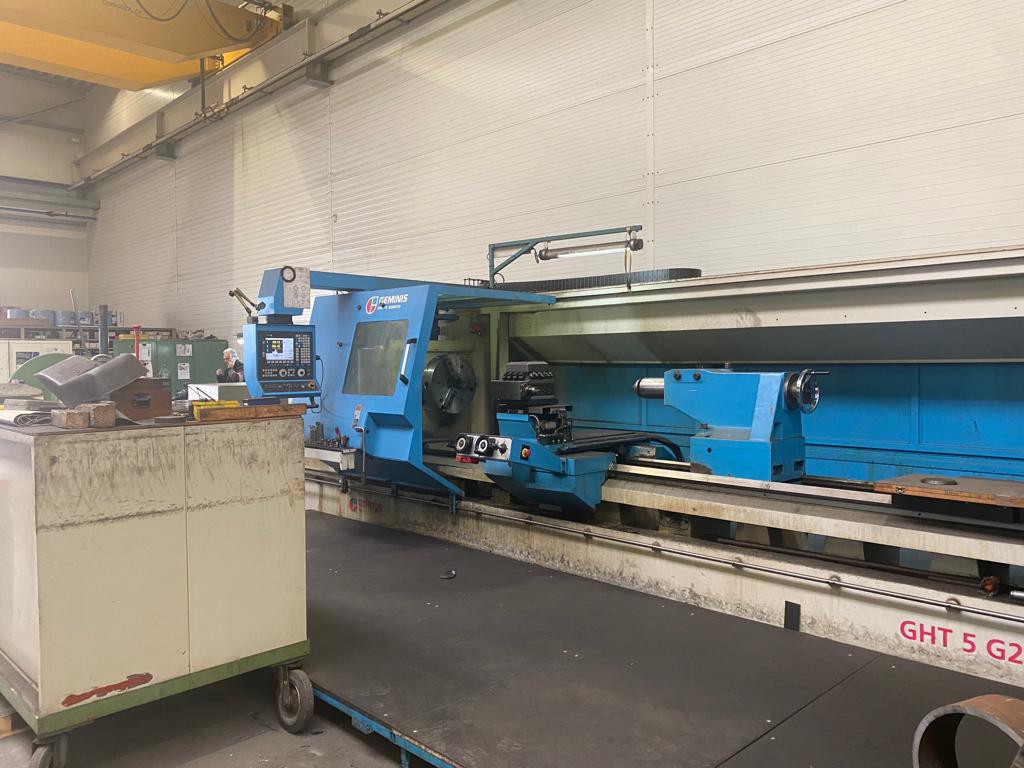

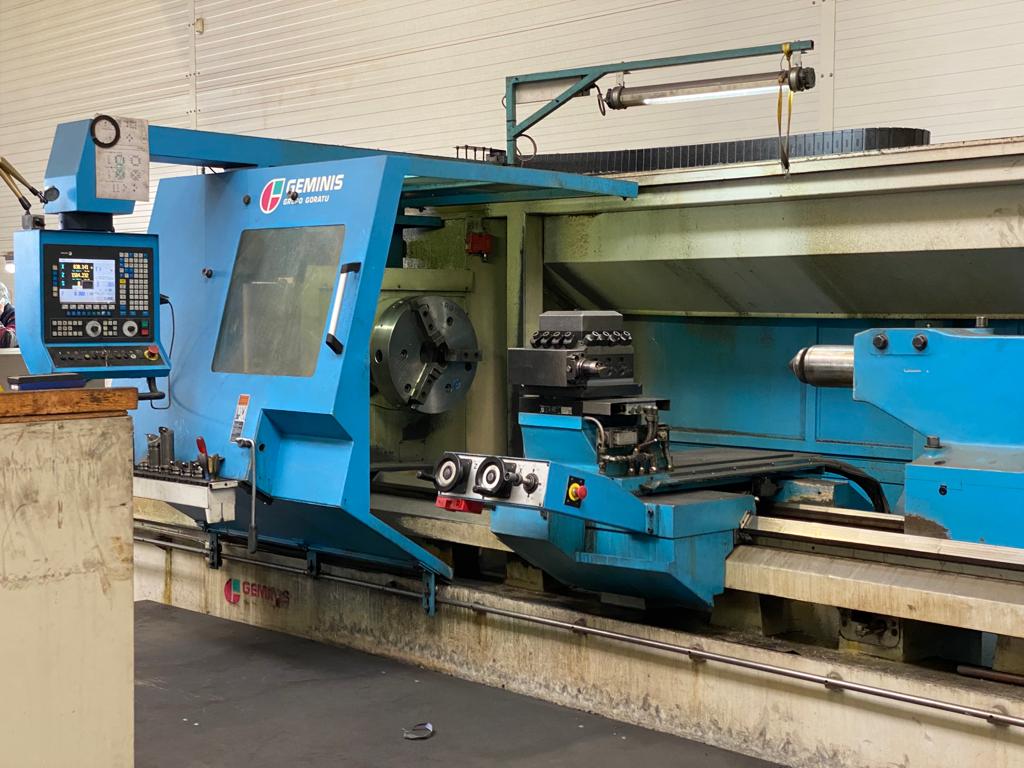

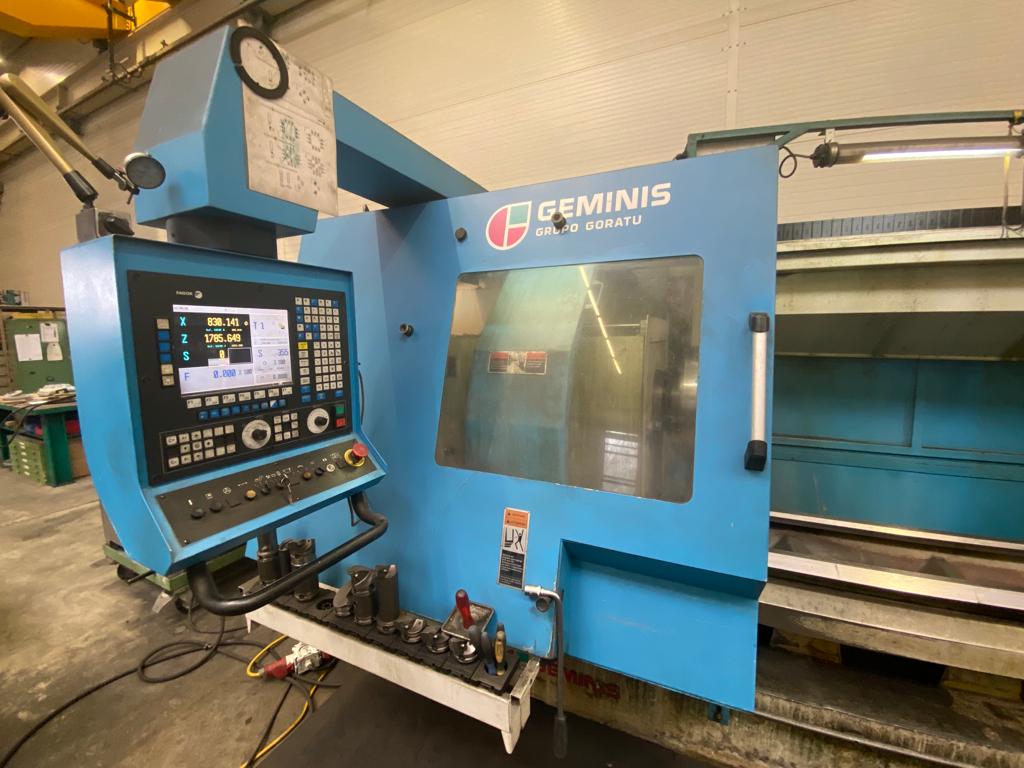

CNC - Lathe

Offer details

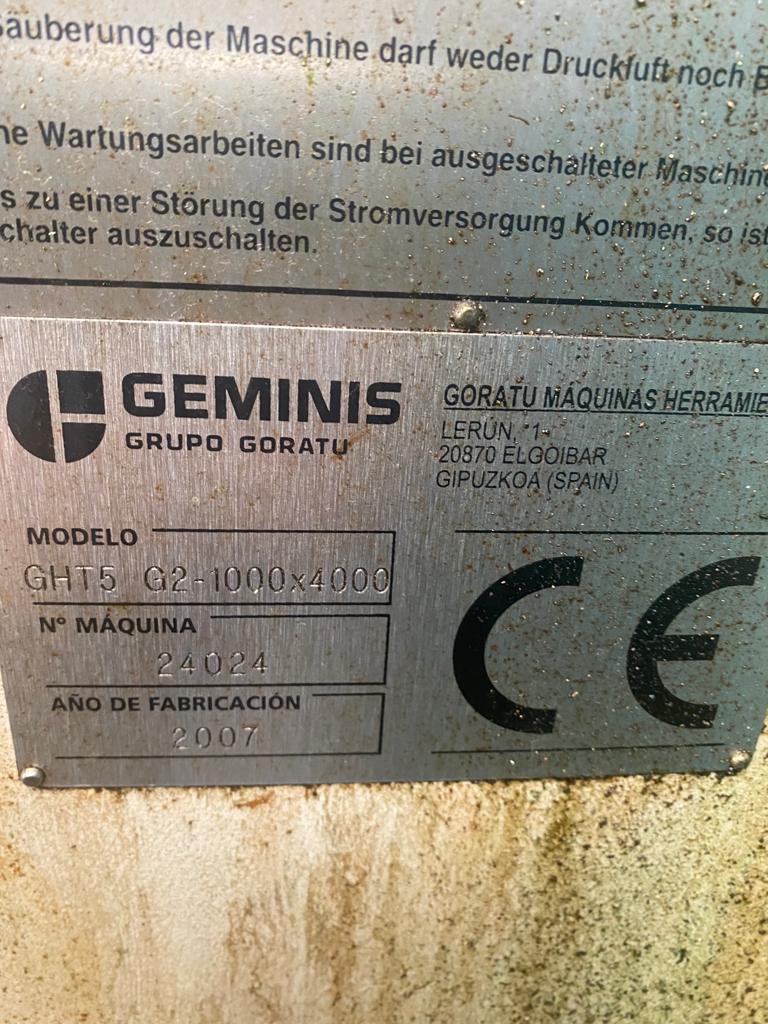

GHT-5-1000-2G x 4000
Delivery time
Freight basis
ex stock
Type of control

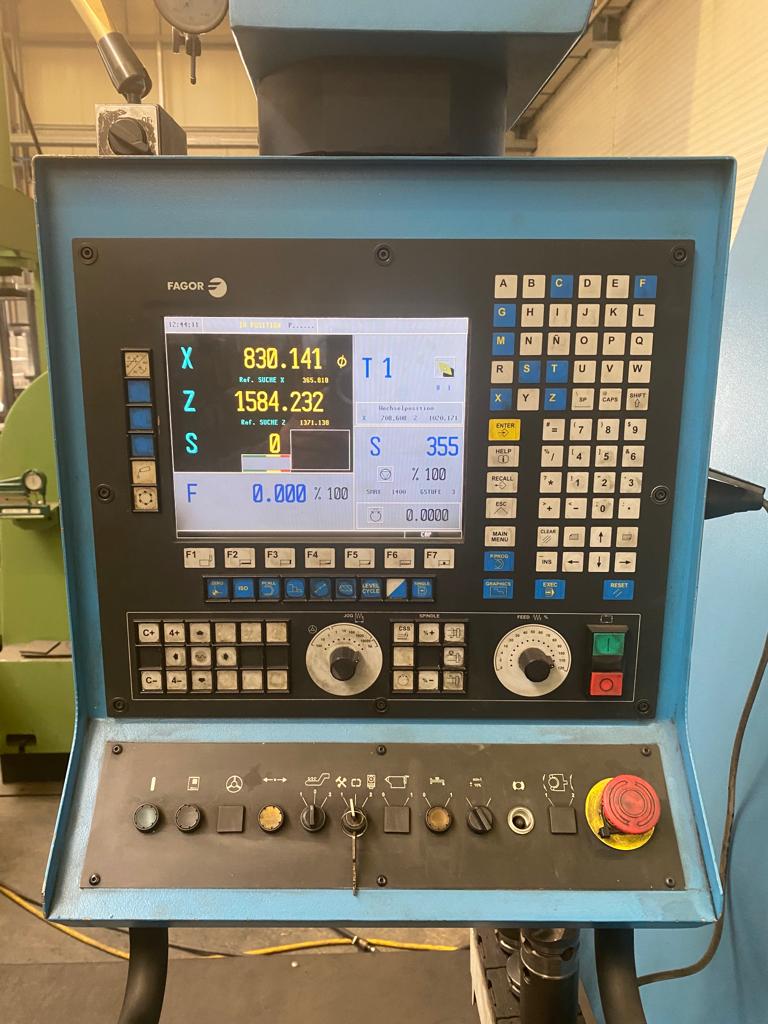

Fagor 8055 TC/C
Storage location
Country of origin

Turning Speeds
0-1.600 RPM
Feed speed X / Z
5.000 mm / min
Bed width
550 mm
Turning Diameter Over Bed
1.000 mm
Gear stage 1 speed range
max. 450 RPM
Gear stage 2 speed range
max. 1.600 RPM
Centre Height
500 mm
Centre Distance
4.000 mm
Spindle Diameter In Front Bearing
150 mm
Spindle Bore
104 mm
Spindle nose
DIN 55026 / 11"
Max. Torque
4140 Nm
Rapid Travel Speed X-Axis
8 m / min
Rapid Travel Speed Z-Axis
8 m / min
Tailstock Quill Diameter
140 mm
main engine
34,5 kW
Max. Workpiece Weight Between Centres
4.800 kg

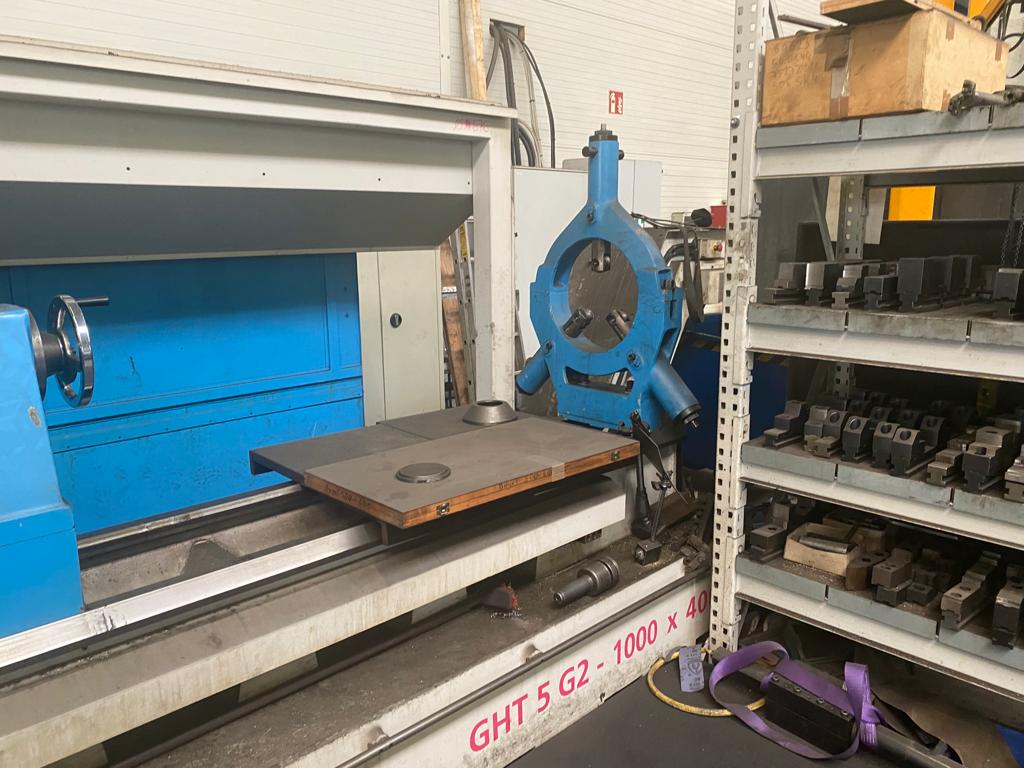

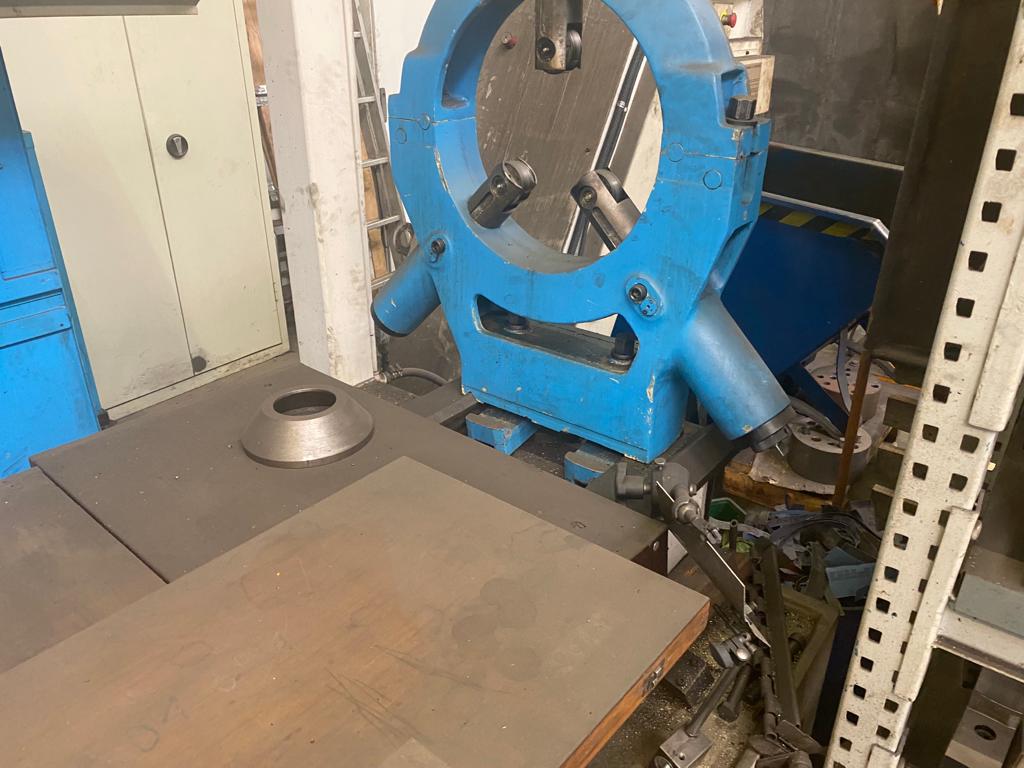

Workpiece Weight With 1 Steady Rests
5.500 kg
Workpiece Weight With 2 Steady Rests
6.200 kg
Turning diameter over cross slide
680 mm
Tailstock shift
300 mm
Width of the cross slide
350 mm
Traverse path of the cross slide
550 mm
Tailstock quill cone
metrisch 80
Height to the flat guide
805 mm
Weight Of The Machine Ca.
10,1 t
