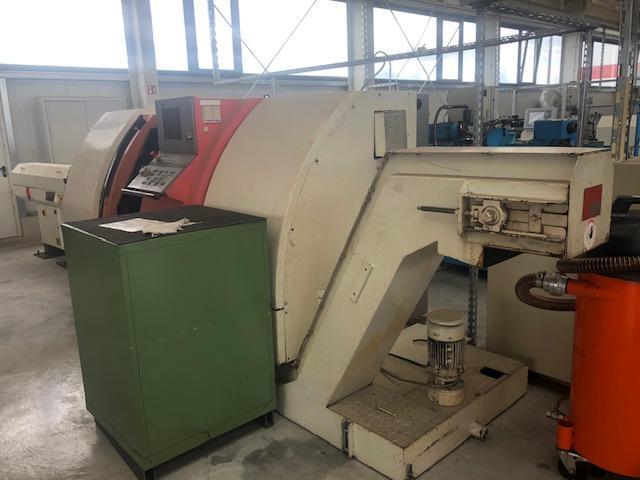

Lathe

Offer details

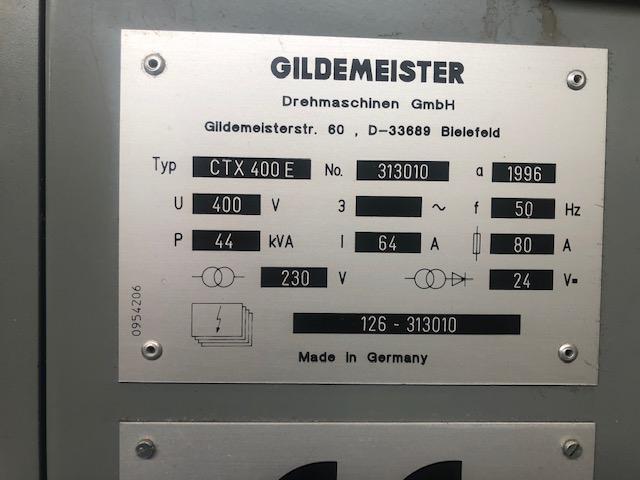

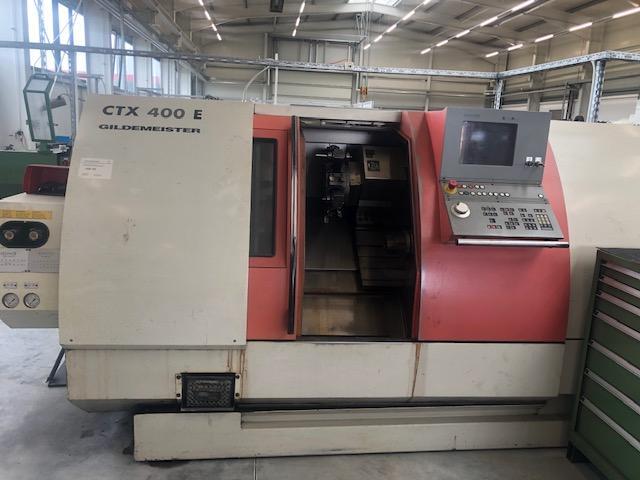

Brand
GILDEMEISTER
Type
CTX 400 E
Year
1996
Delivery time
immediately
Freight basis
ex stock
Type of control
CNC

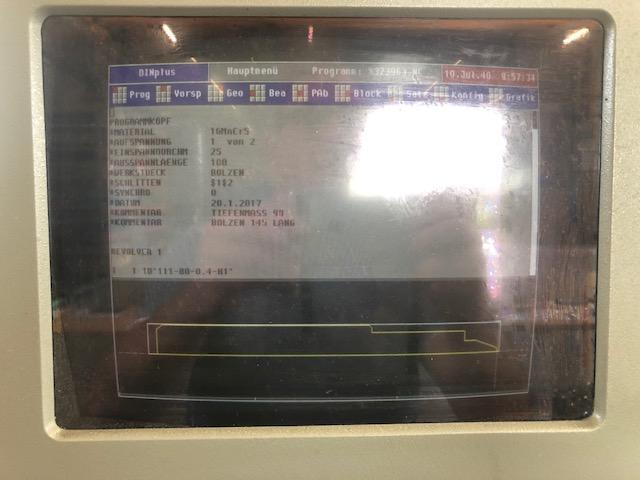

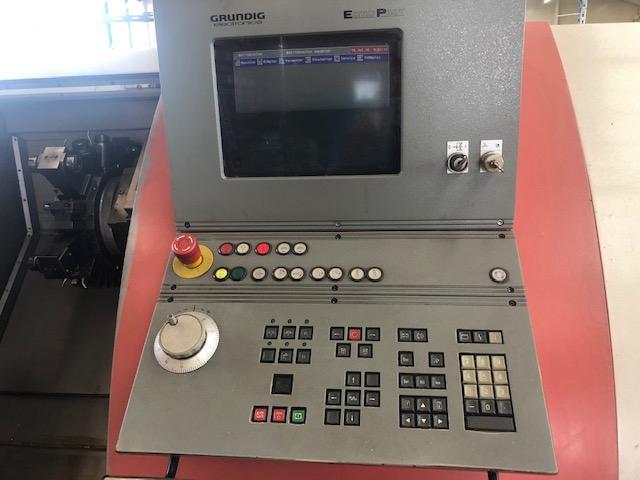

Control
Grundig
Storage location
Mülheim an der Ruhr
Country of origin
Deutschland

Spindle power
21 kW
C-Axis
vorhanden
Swing diameter over plan guidance
420 mm
Chuck diameter
200/250 mm
C-axis speed
100 RPM
C-axis division accuracy
0,04 Degree
Tailstock - diameter
80 mm
Tailstock travel
550 mm
Tailstock mount
Mk 4
Machine length
3185 mm
Machine width
1700 mm
Machine Height
1700 mm
Weight Of The Machine Ca.
4,3 t
Swing Diameter Over Bed Slide
570 mm
Longitudinal Travel (Z-Axis)
635 mm
Cross Movement. (X-Axis)
220 mm
Spindle Diameter In Front Bearing
120 mm

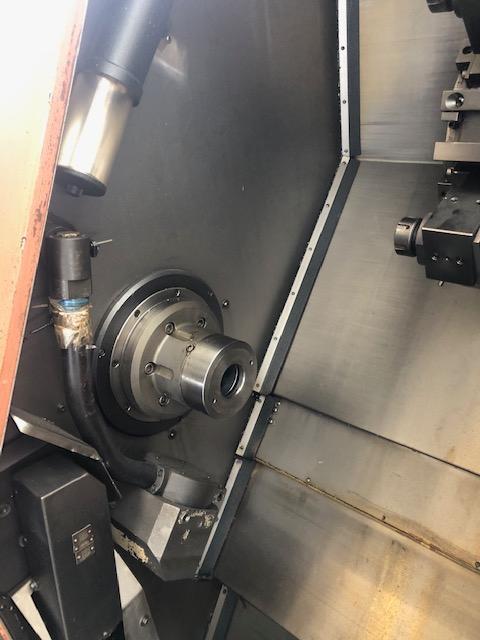

Spindle Bore
79 mm
Tool Taper
VDI 40
Spindle Speed Min.
25 RPM
Spindle Speed Max.
5000 RPM
Rapid Travel Speed X-Axis
20 m / min
Rapid Travel Speed Y-Axis
24 RPM

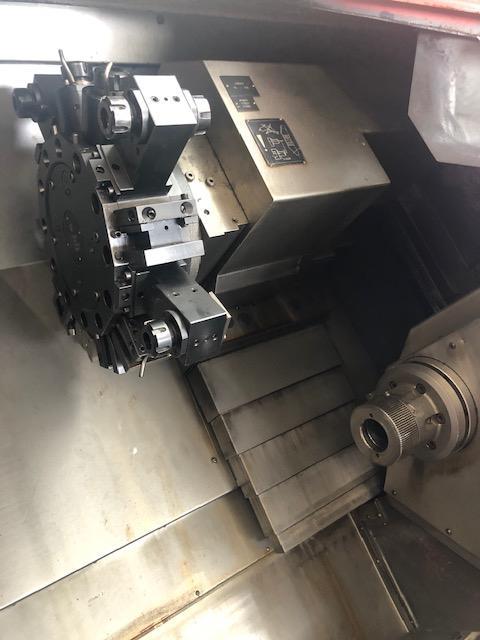

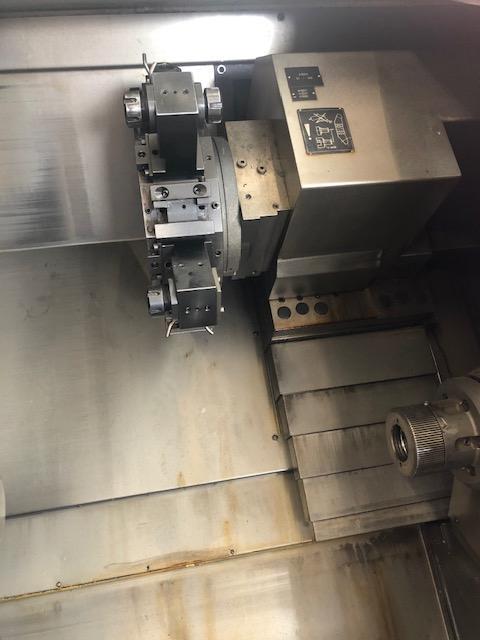

Tool changer
12 Pcs
