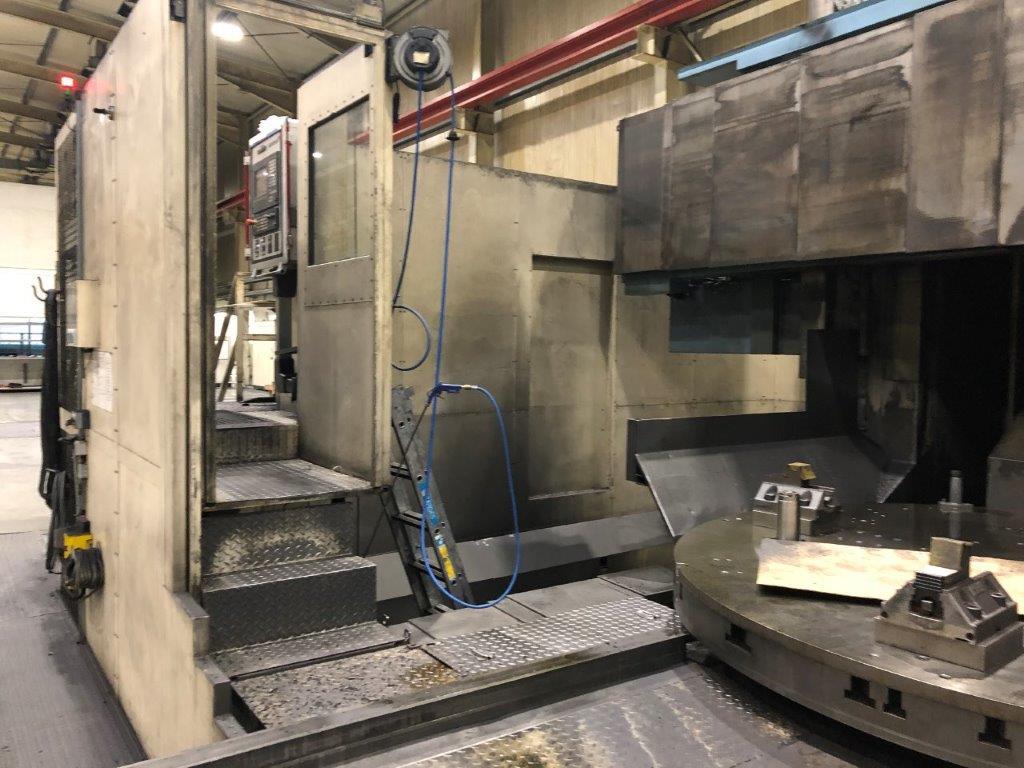

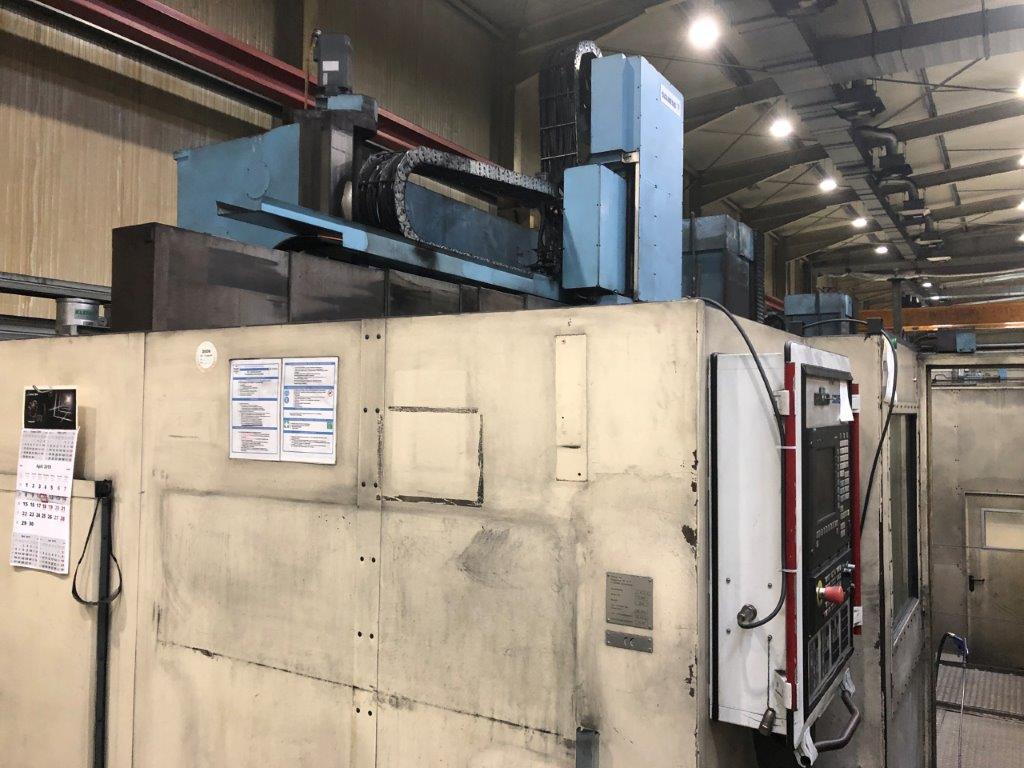

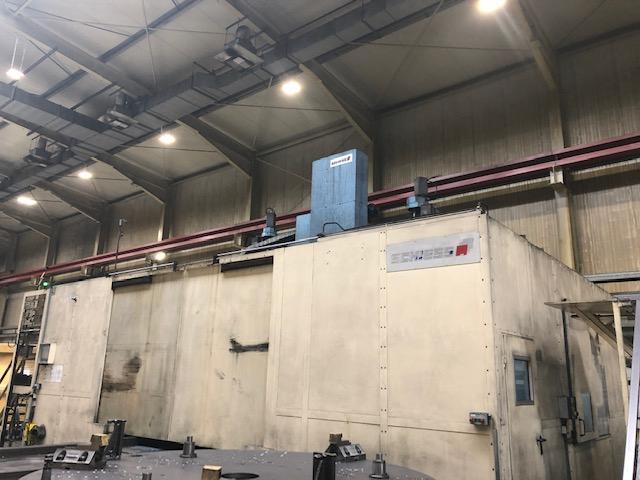

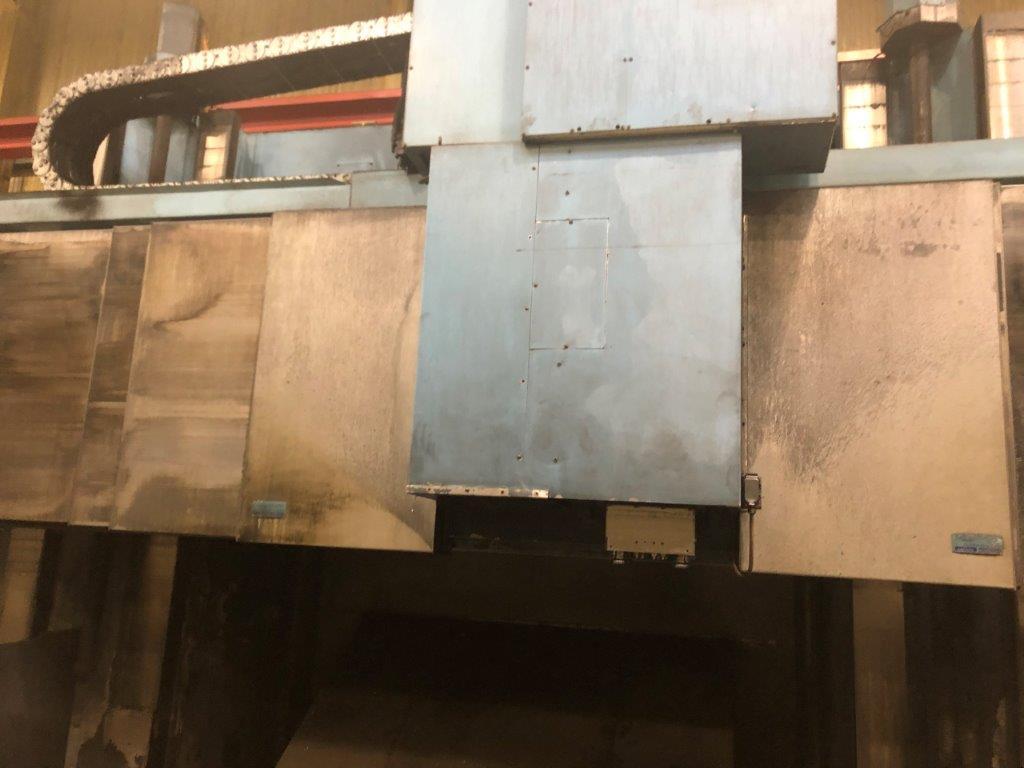

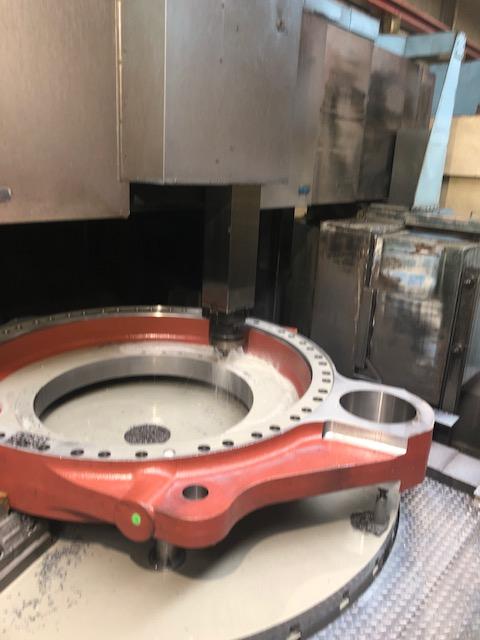

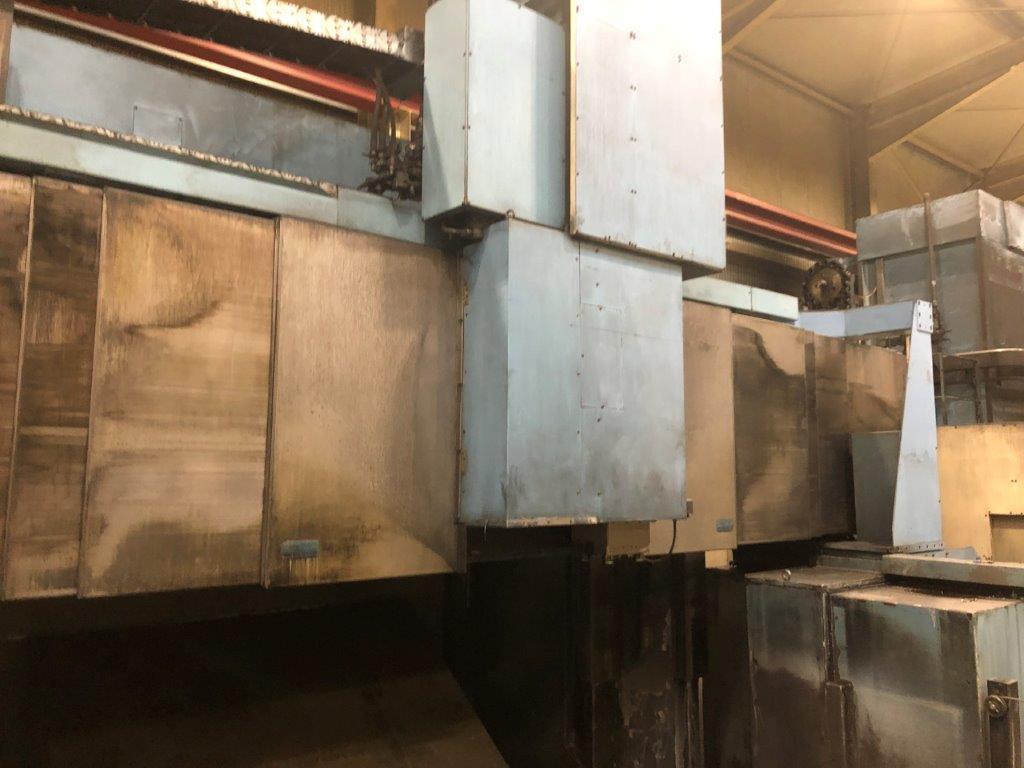

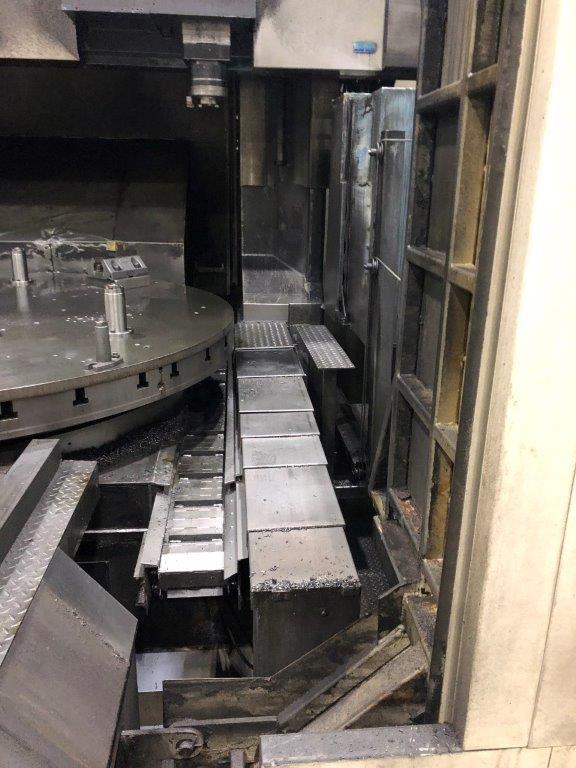

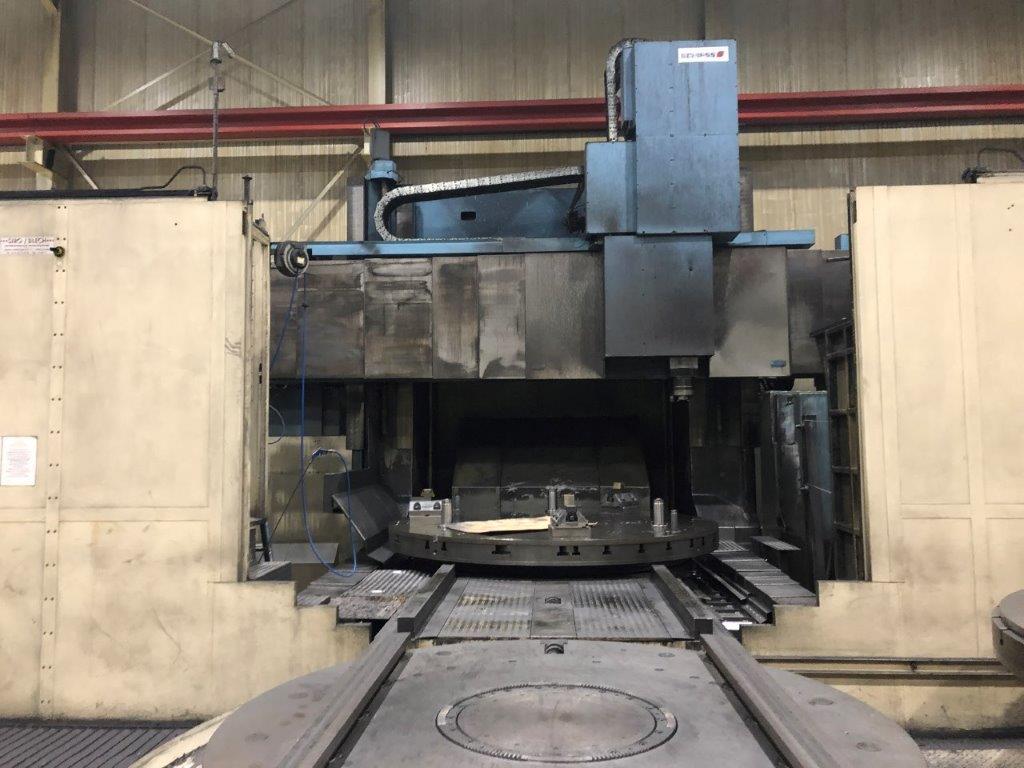

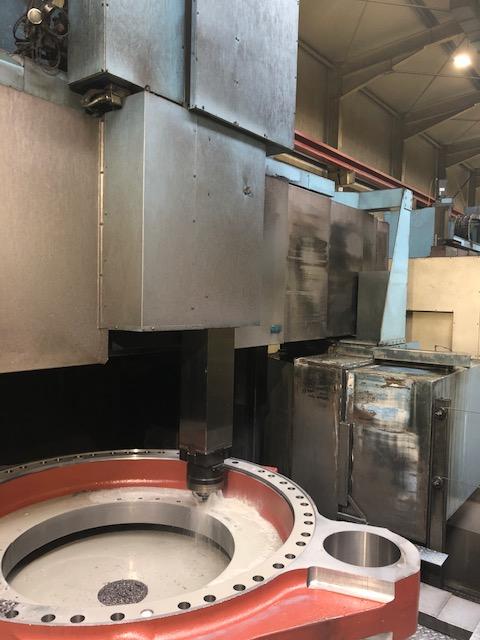

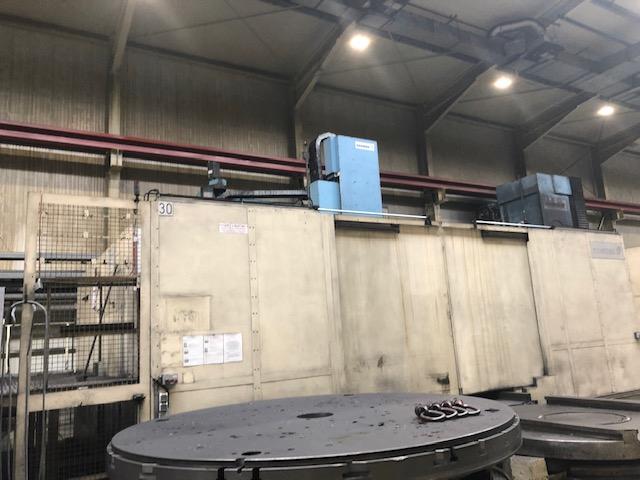

CNC turning and milling center - 5 Axis

Offer details

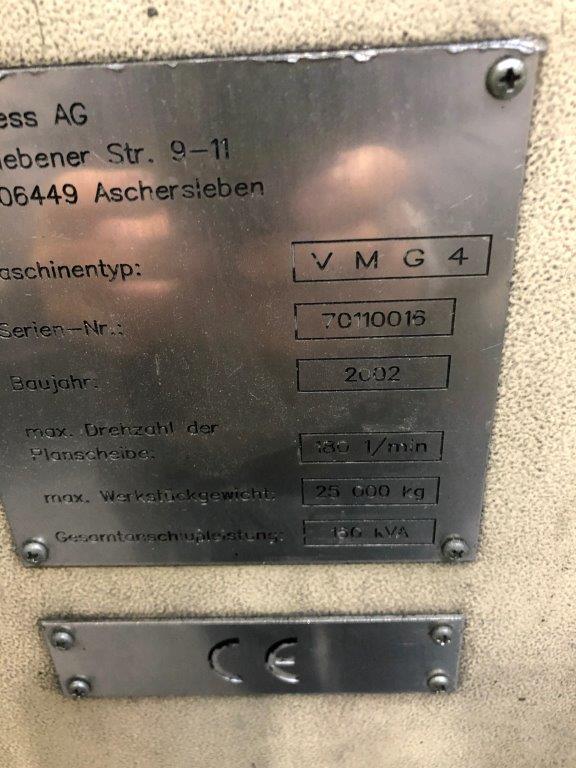

Vertimaster VMG 4 / MA 30
Delivery time
Freight basis
ex stock

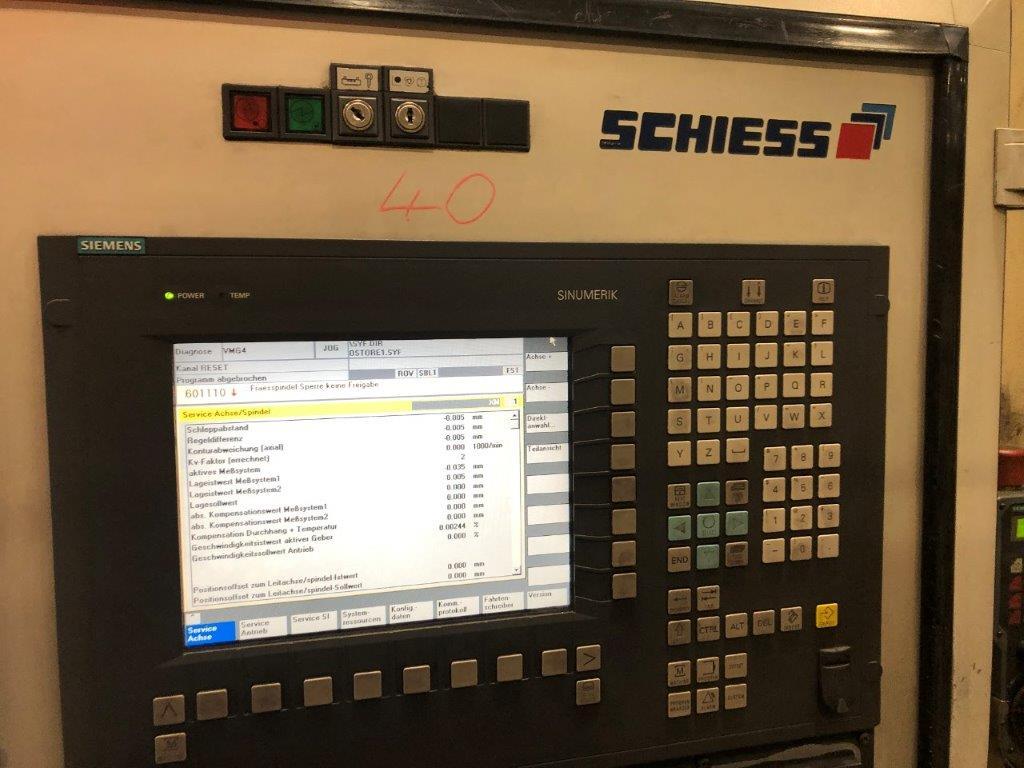

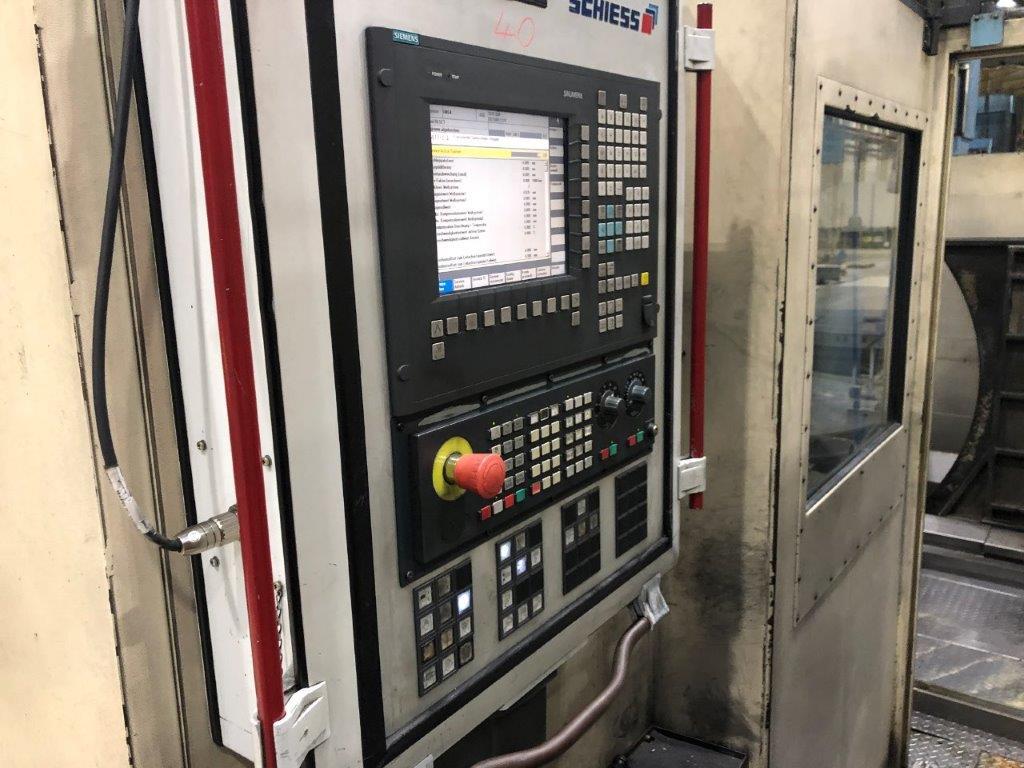

Type of control
Siemens SINUMERK 840 D
Storage location
Mülheim an der Ruhr
Country of origin

Turning Diameter
3200 mm
Max workpiece height
2500 mm

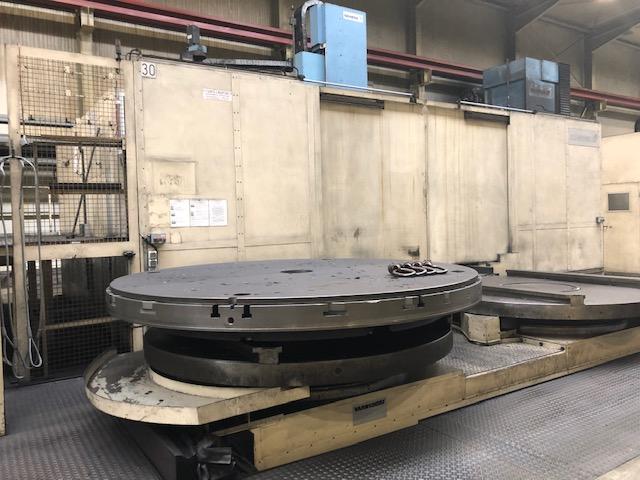

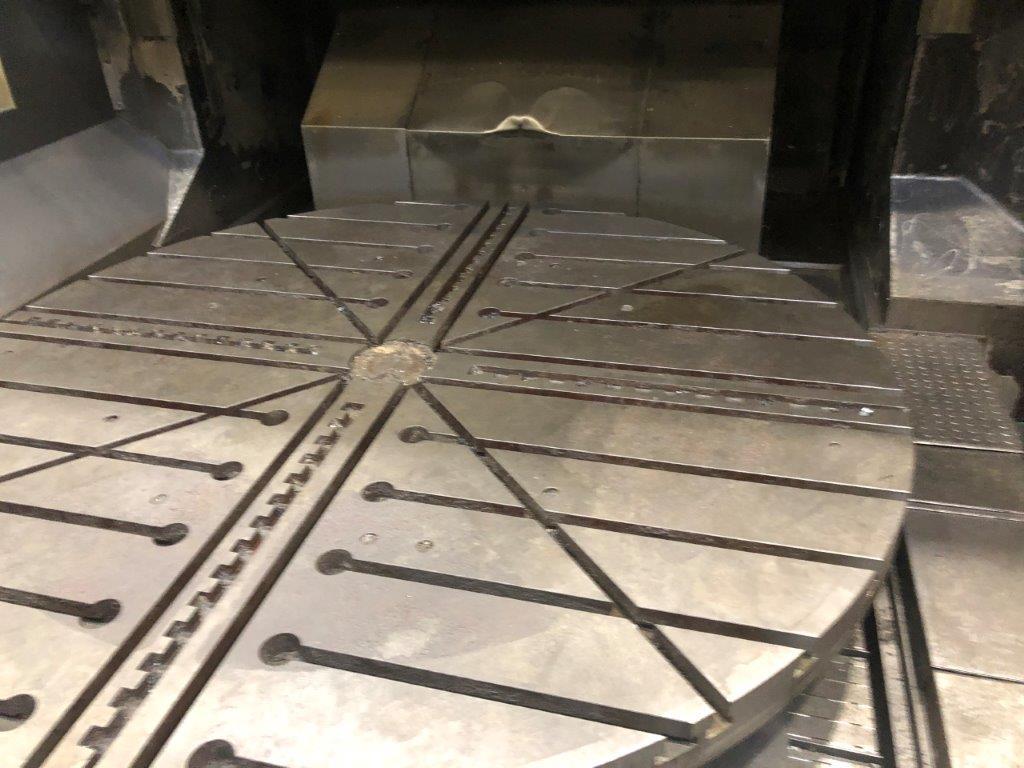

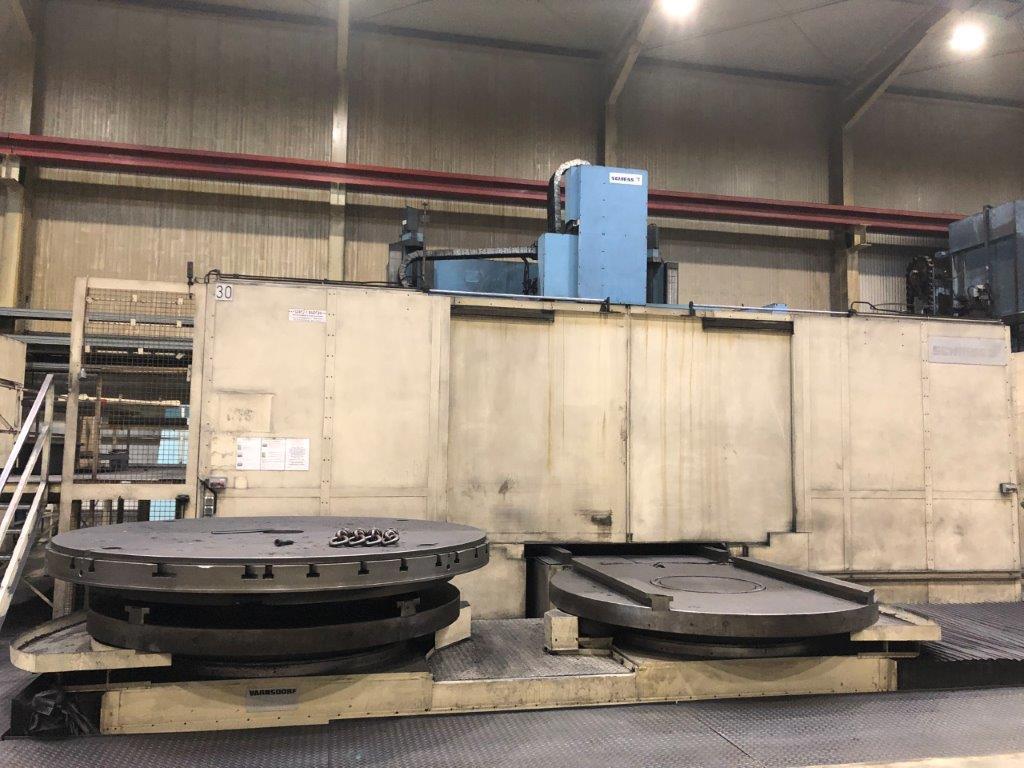

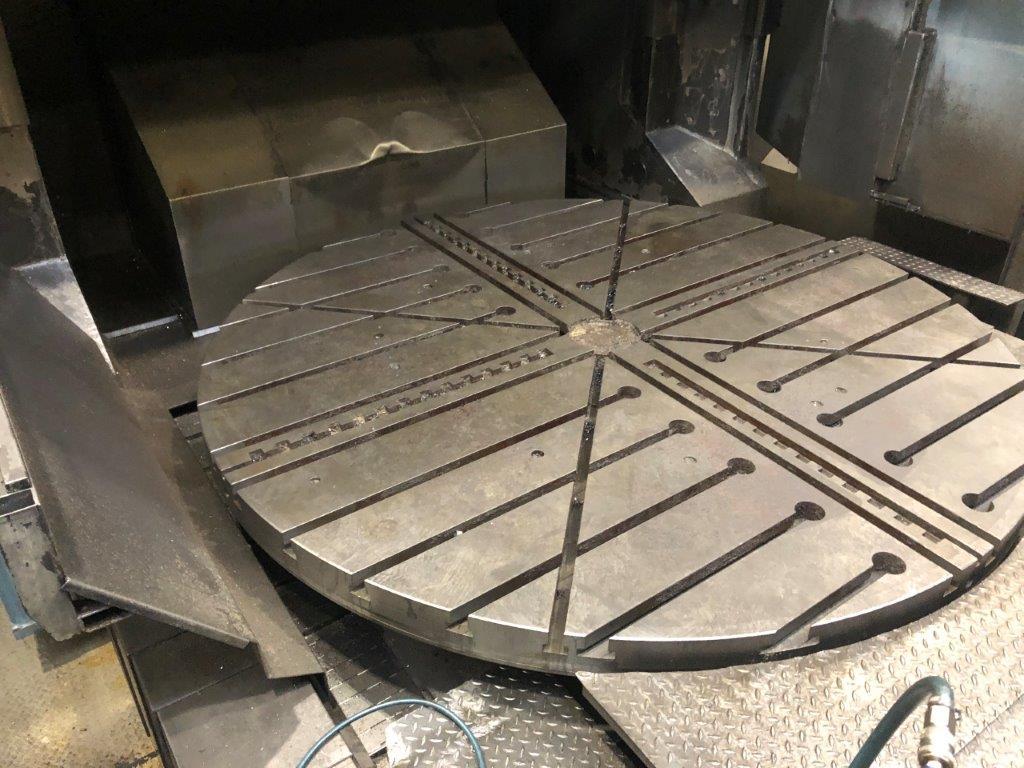

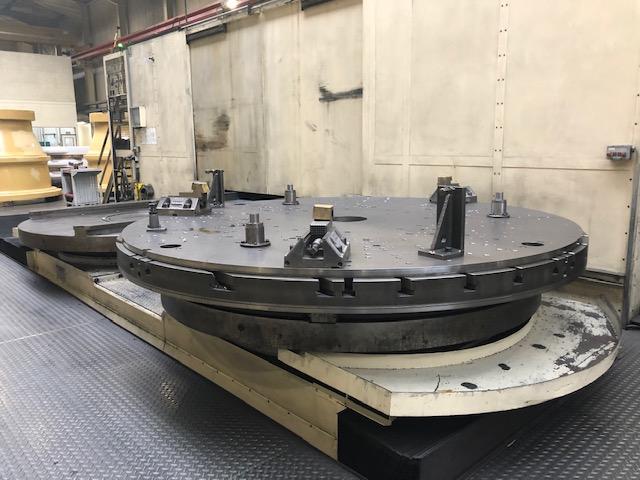

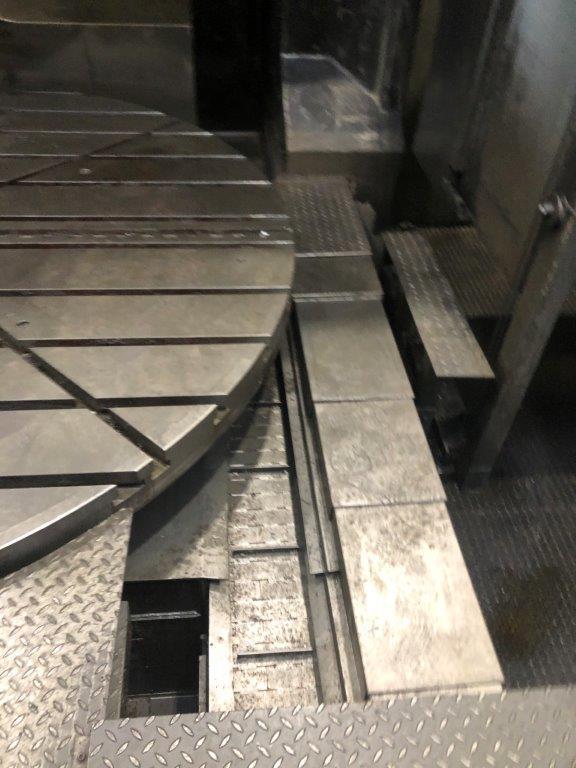

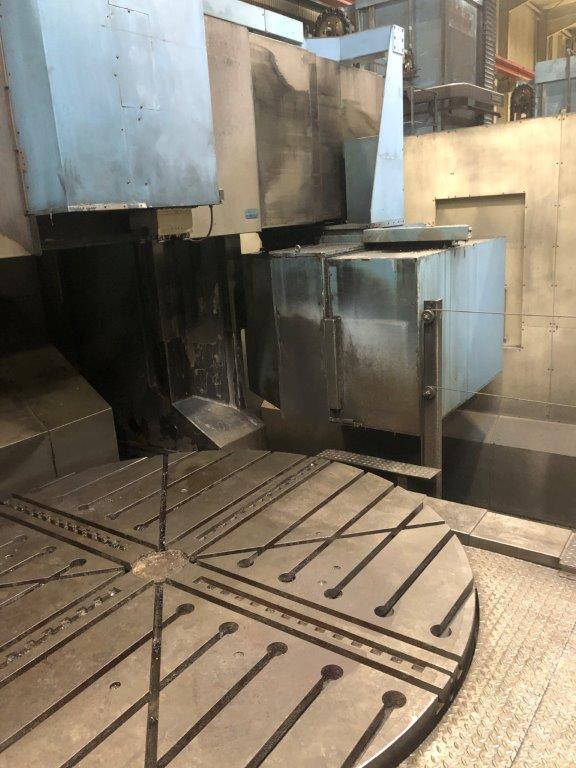

Pallet diameter
3000 mm
Max. Load on the face plate
25000 kg
RAM vertical travel
1400 mm
Vertical stroke of the crossbeam
1400 mm
Rotate table rotation speed
0,5 - 120 RPM
Milling the table rotation speed
0,0004 - 4 RPM
Power Capacity - Table
52 kW
Rapid sledge
16000 mm / min
Rapid traverse RAM
16000 mm / min
Rapid traverse gantry
8000 mm / min
Rapid crossbar
4000 mm / min
Max torque faceplate
75 kNm
Max cutting force when turning
50 kN
Max cutting force when milling
25 kN
