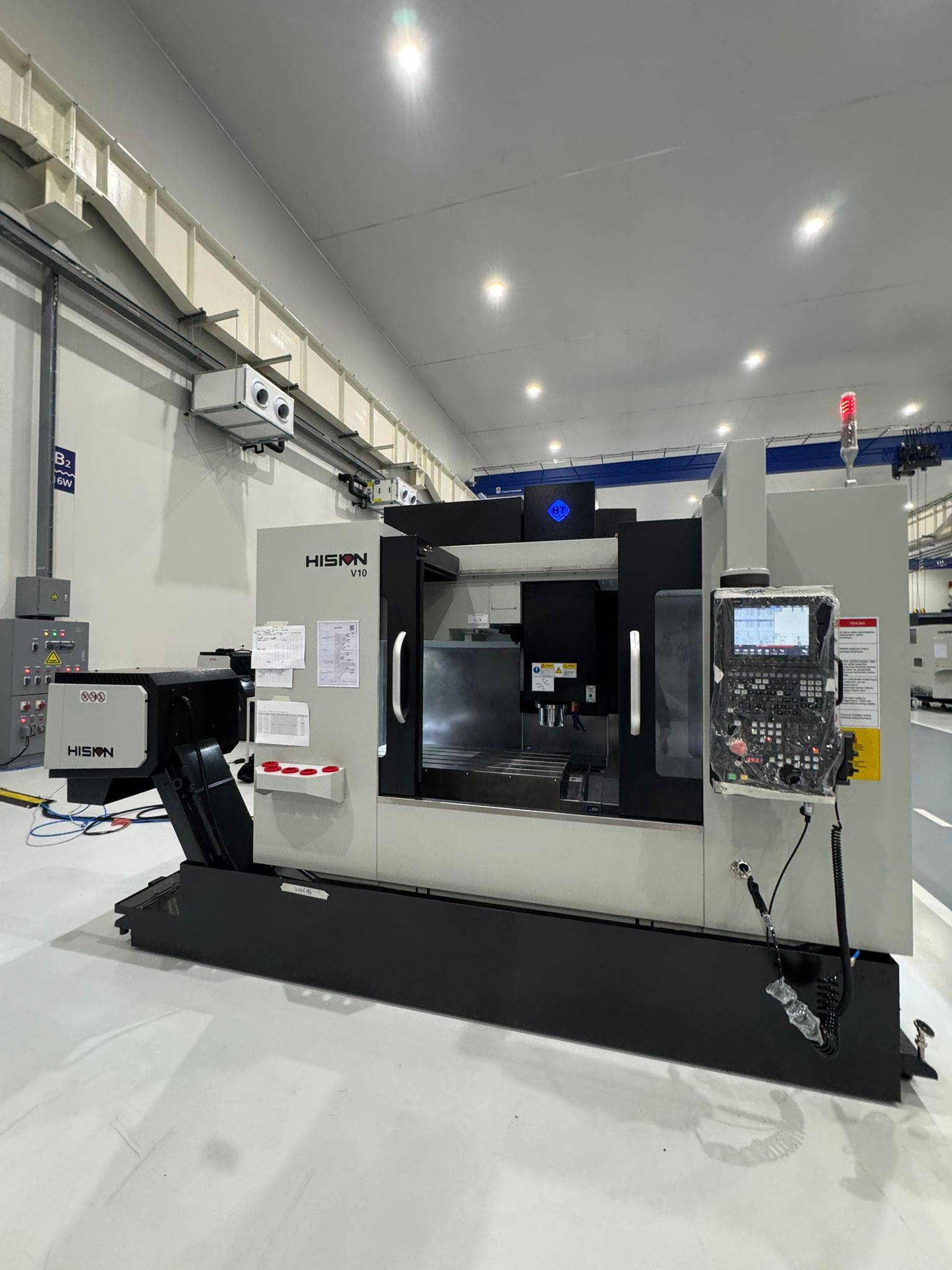

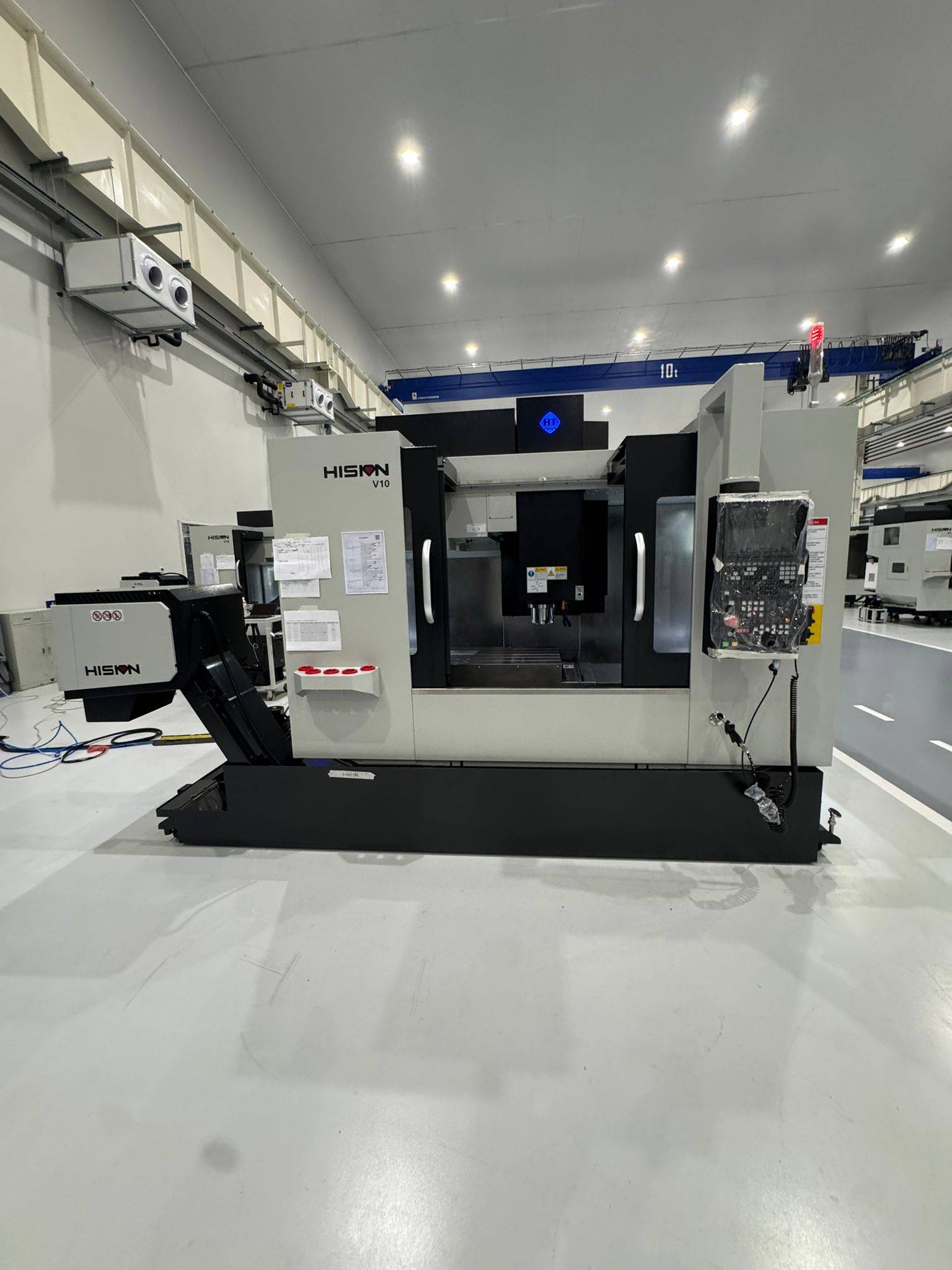

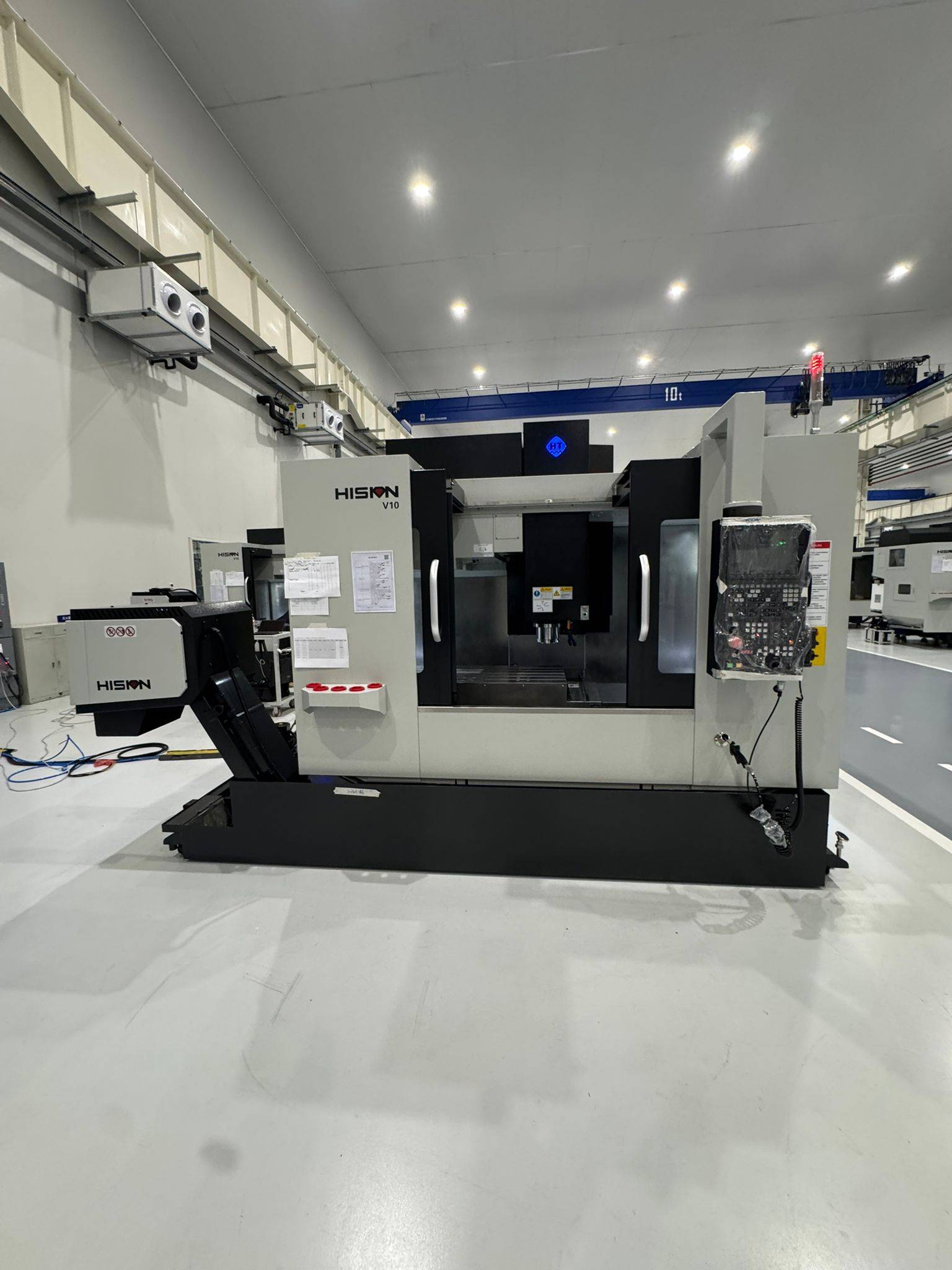

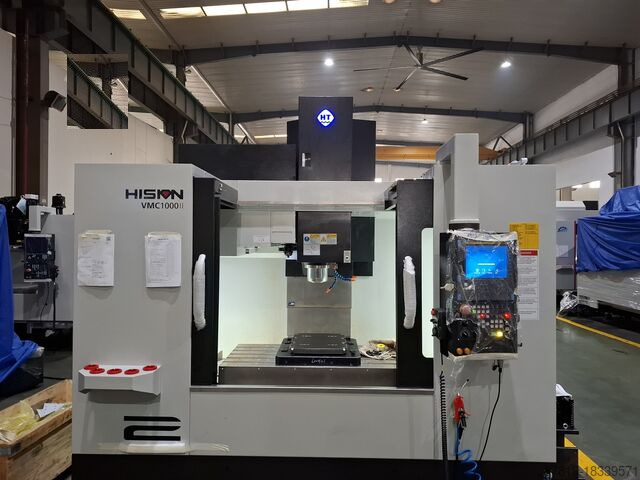

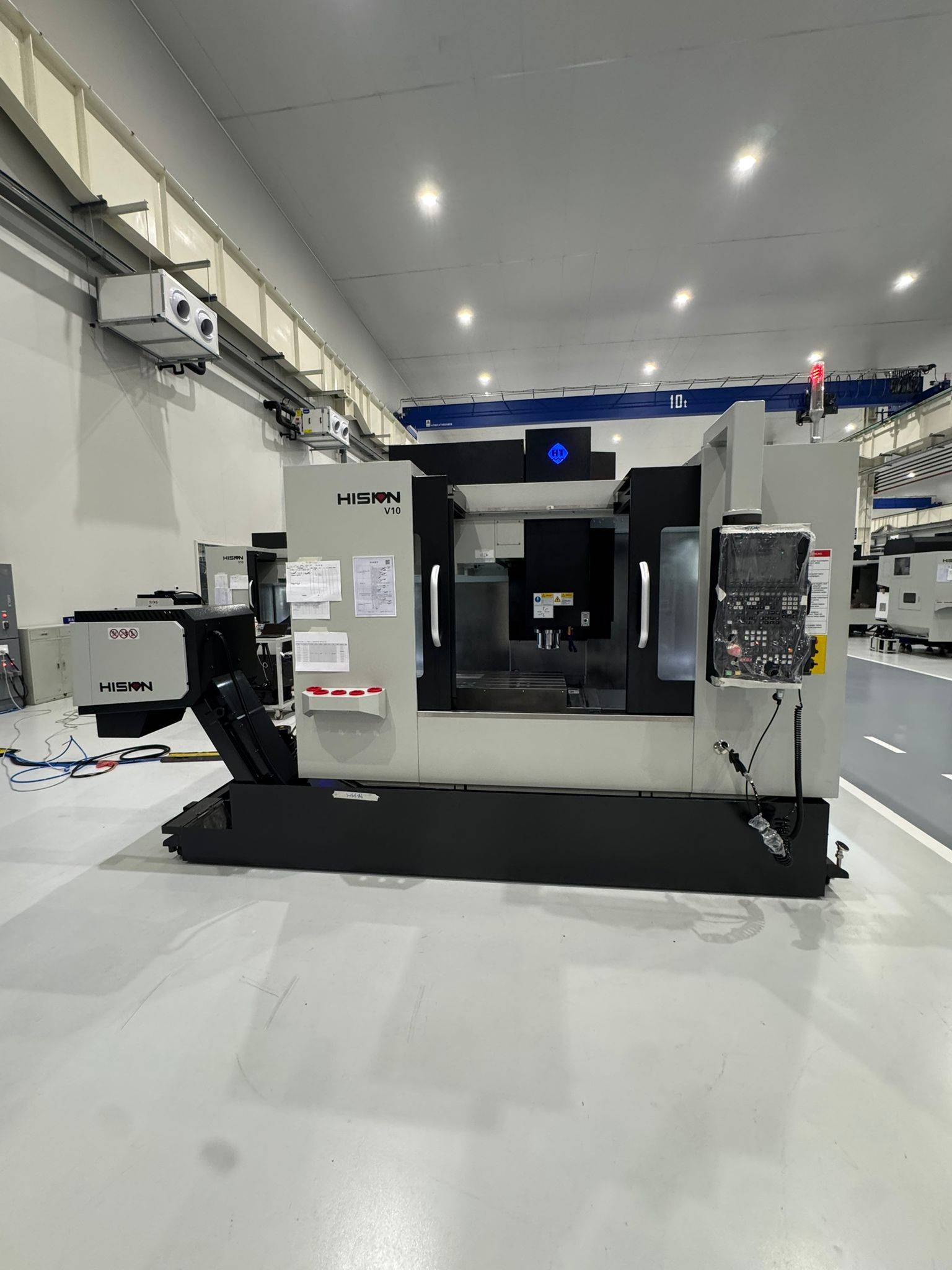

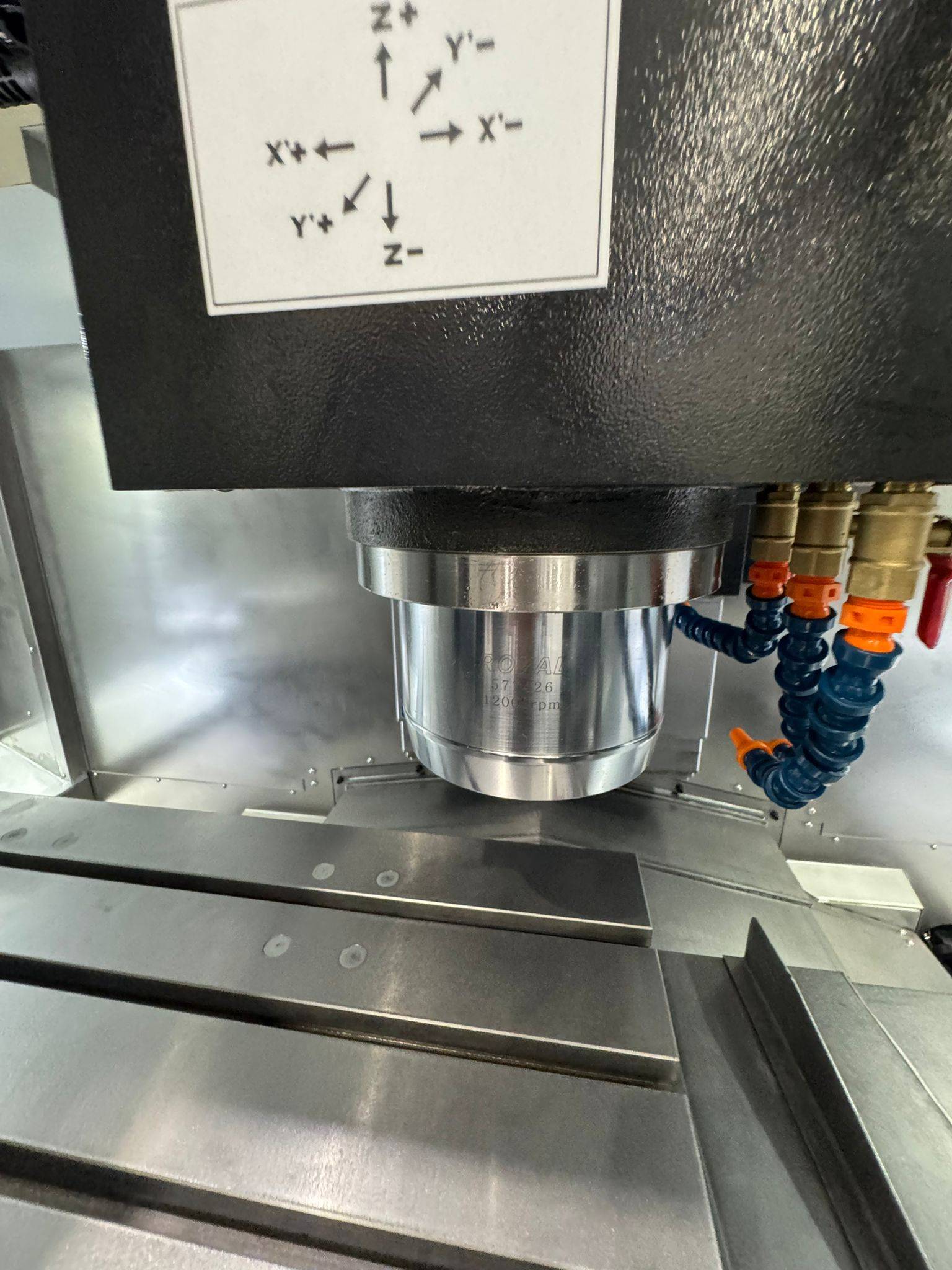

CNC - Machining Center - Vertical
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Offer details
Manufacturer
HAITIAN
Type
V10
Year
2026
Delivery time
immediately
Freight basis
ex stock
Type of control
CNC

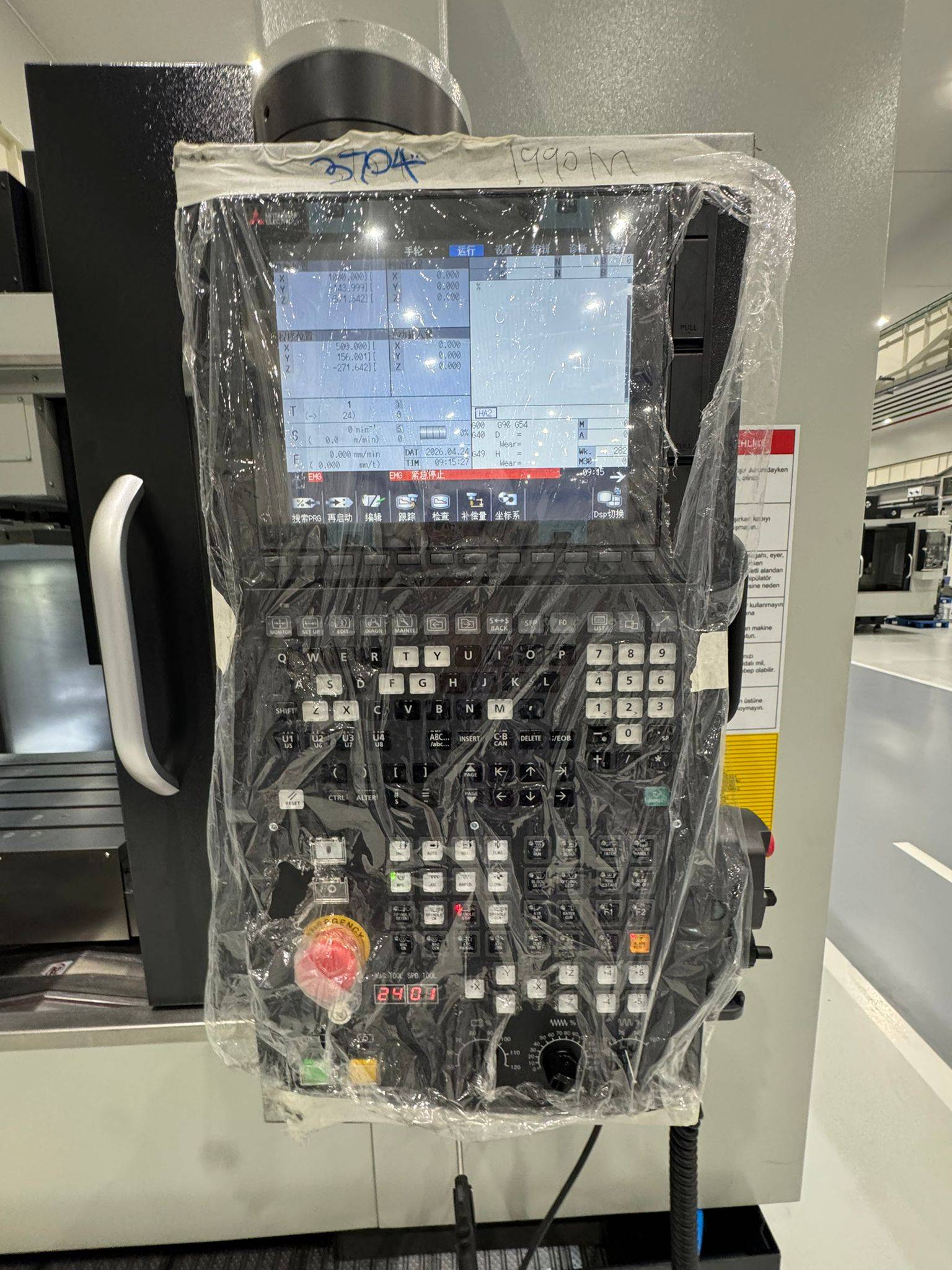

Control
FANUC 0i-MF
Storage location
Halberstadt
Country of origin
China
X-Travel
1000 mm
Y-Travel
600 mm
Z-Travel
600 mm

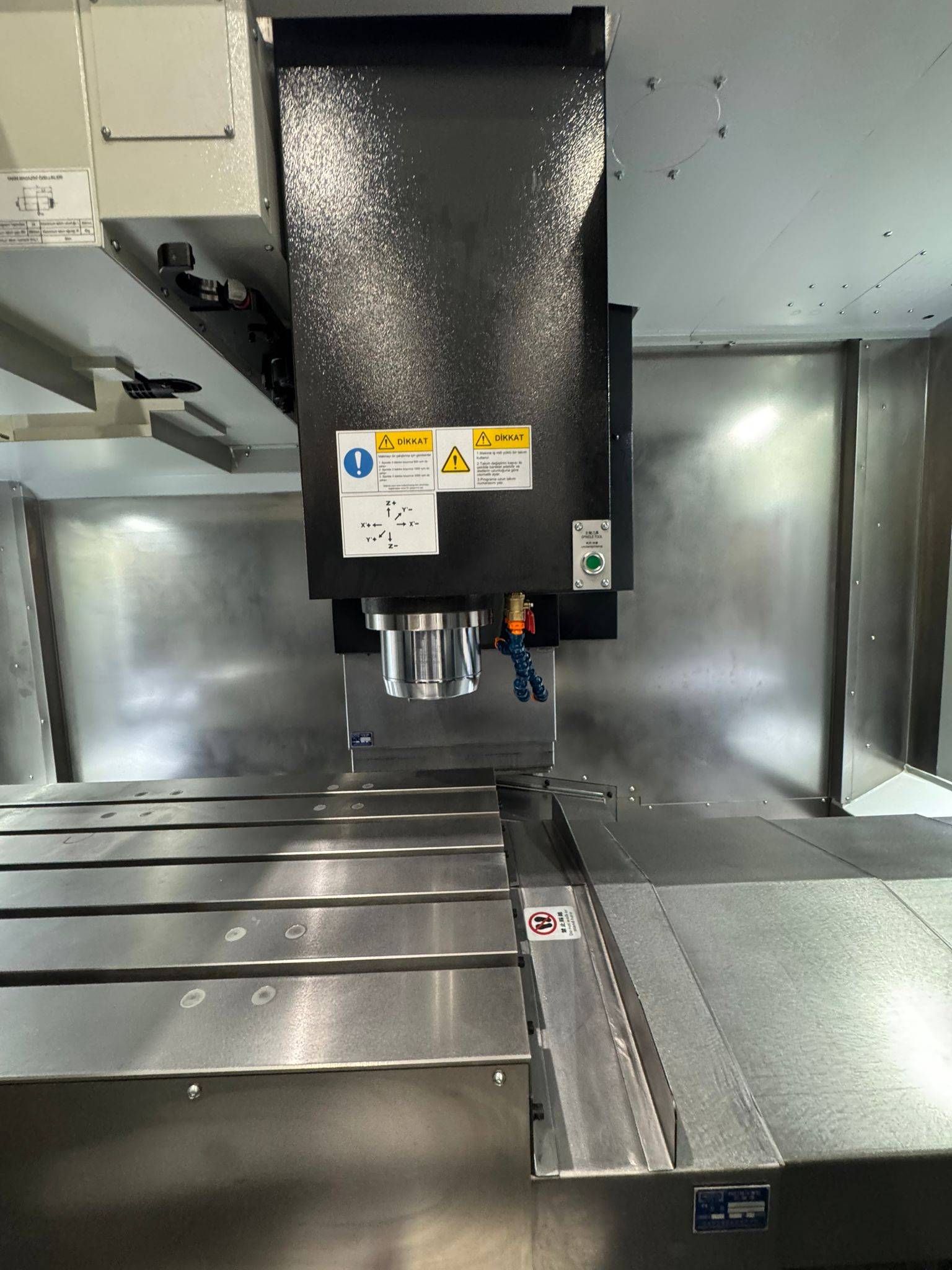

Spindle Taper
SK 40

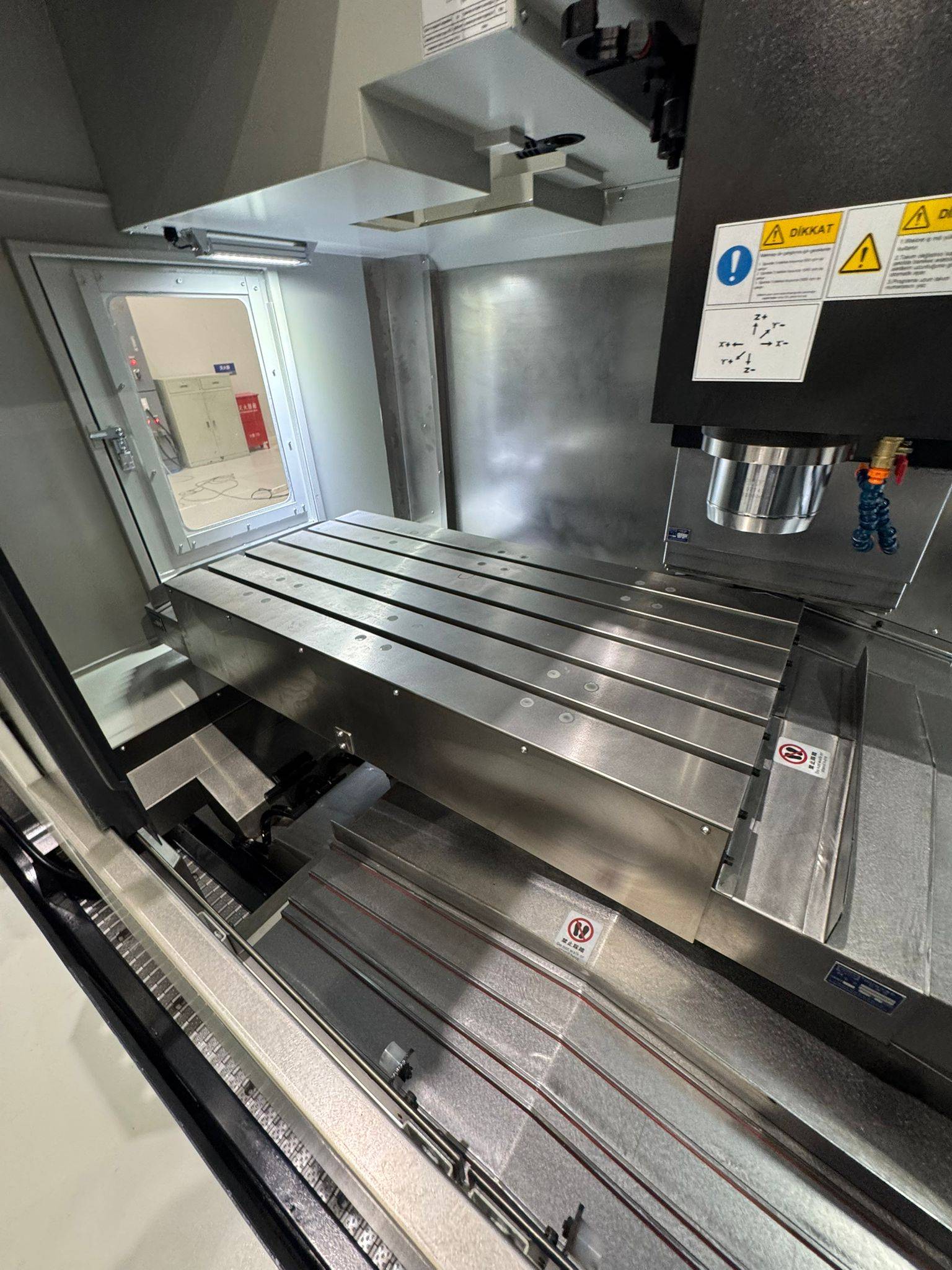

Table Dimensions (Lengthxwidth)
1200 x 600 mm
Table Load
800 kg
Max. Tool Weight
8 kg
Max. Tool Length
300 mm
Max. Tool Diameter
80 mm
Numbers Of Tools In Magazin
24
Turning Speeds
8000 RPM
Rapid Traverse X-Axis
36 m / min
Rapid Travel Y-Axis
36 m / min
Rapid Traverse Z-Axis
36 m / min
Distance between spindle nose and table
150 - 750 mm
Machine length
2800 mm
Machine width
3550 mm
Machine Height
2700 mm
Weight Of The Machine Ca.
6,5 t
Tool-tool change time
2,5 sec
Feed rate X-axis
15 m / min
Feed rate Y-axis
15 m / min
Z-axis feed rate
15 m / min
Positioning accuracy
0,008 / 0,006 / 0,006 X/Y/Z
Repeatability
0,005 / 0,004 / 0,004 X/Y/Z
T-slot in the table
5 x 18 x 100 mm
Additional information
- Documentation / Manual
- Steplessly adjustable spindle speed
- Chip conveyor
- Drive type: Belt drive
- Pull stud: MAS P40T-I (45°)
- Power supply: 30 kVA
- Pneumatic and hydraulic lubrication system
- Coolant system
- Internal coolant tank with chip conveyor
- Full enclosure
- Air gun
- 3-color signal tower light
- Standard accessories
- Chip trolley
This is a brand-new machine available at short notice, with a wide range of customization options to meet individual customer requirements. Various control systems, including FANUC, HEIDENHAIN, and Siemens, as well as different spindle configurations and a wide range of additional equipment options, are available. This allows the machine to be tailored to specific production requirements and machining applications.
- Steplessly adjustable spindle speed
- Chip conveyor
- Drive type: Belt drive
- Pull stud: MAS P40T-I (45°)
- Power supply: 30 kVA
- Pneumatic and hydraulic lubrication system
- Coolant system
- Internal coolant tank with chip conveyor
- Full enclosure
- Air gun
- 3-color signal tower light
- Standard accessories
- Chip trolley
This is a brand-new machine available at short notice, with a wide range of customization options to meet individual customer requirements. Various control systems, including FANUC, HEIDENHAIN, and Siemens, as well as different spindle configurations and a wide range of additional equipment options, are available. This allows the machine to be tailored to specific production requirements and machining applications.
