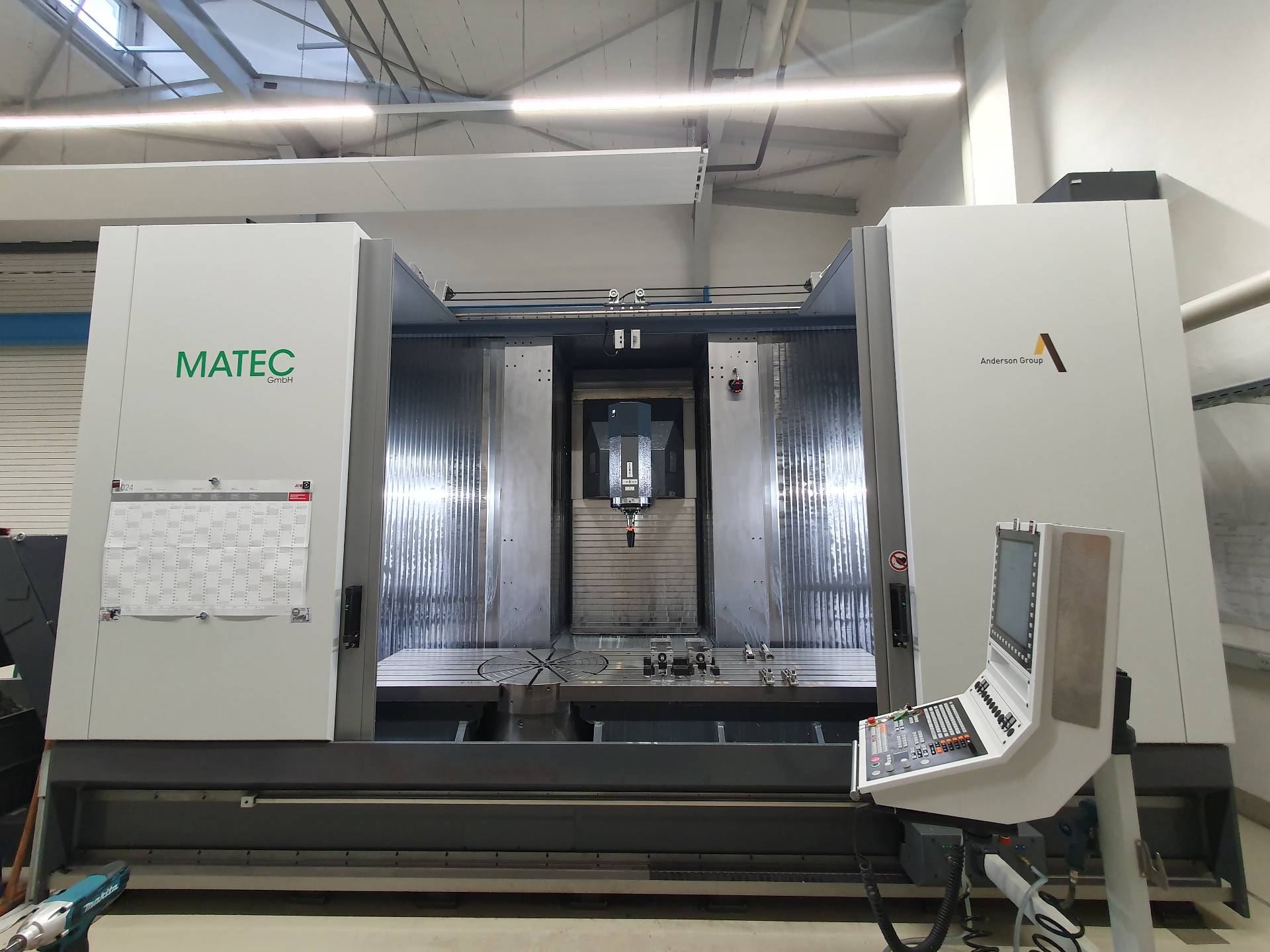

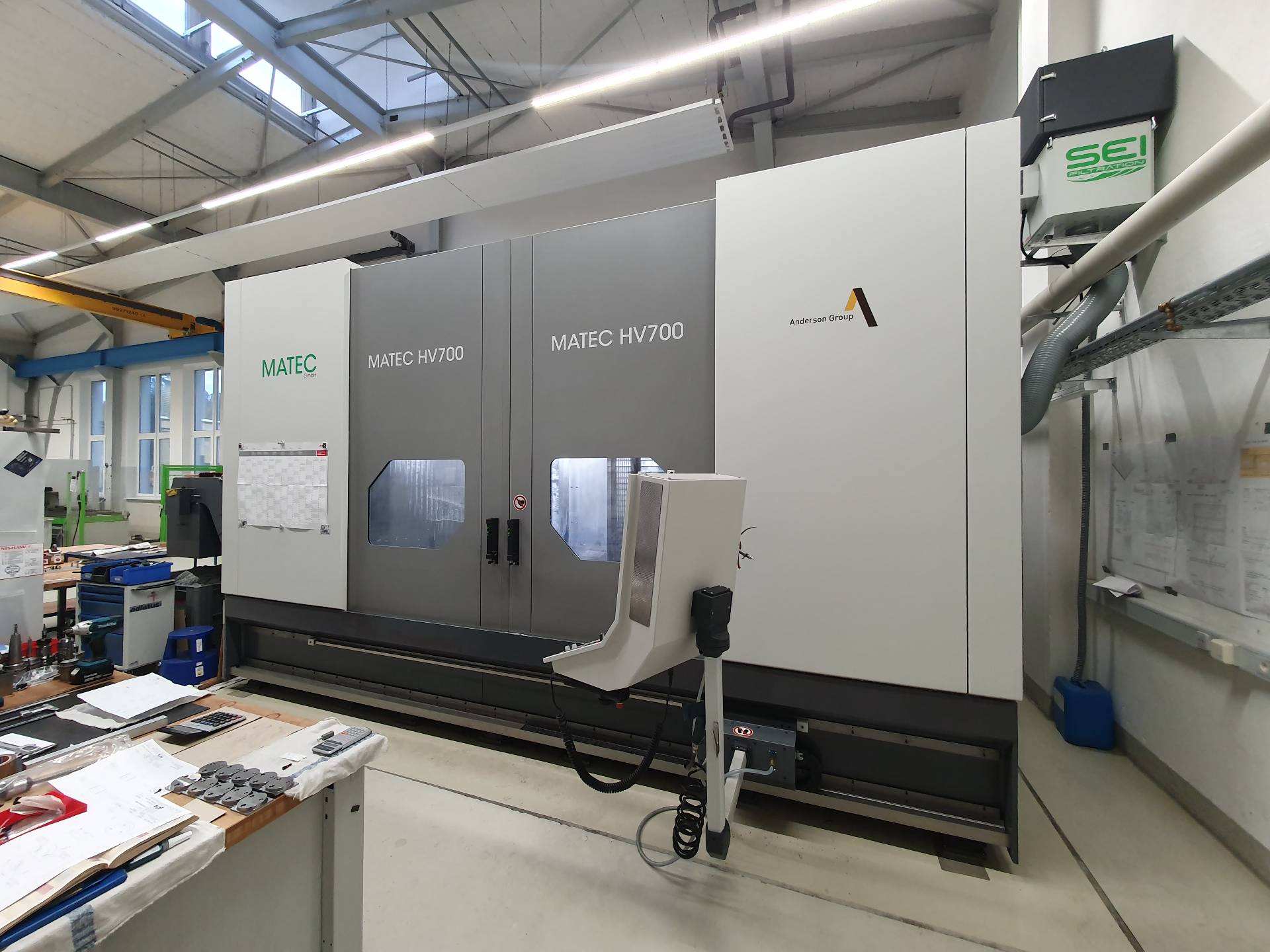

CNC - Milling and Turning Center 5 - Axis

Offer details

Manufacturer
MATEC
Type
HV 700
Year
2021
Delivery time
immediately
Freight basis
ex stock
Type of control
CNC-Steuerung
Control

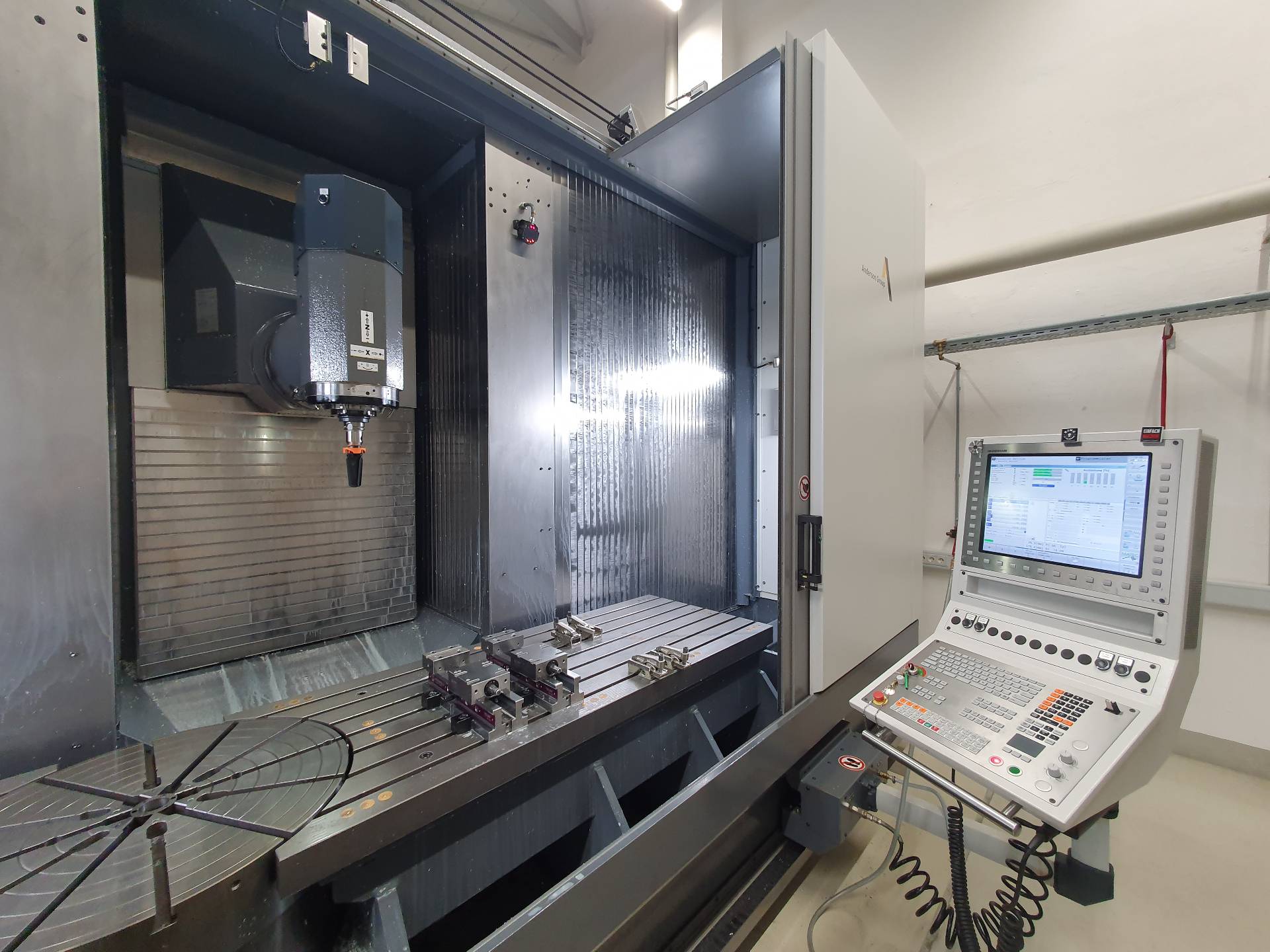

Heidenhain TNC 640
Storage location
Halberstadt
Country of origin
Germany

X-Travel
2600 mm
Y-Travel
700 mm
Z-Travel
950 (horizontal) / 900 (vertikal) mm
Swivel range
± 105 °
Table speed range
max. 700 min/-1
Tool Taper
HSK-A63
Numbers Of Tools In Magazin
50
Turning Speeds
20 - 15.000 RPM
Max. Torque
195 (40 % ED) / 150 (100 % ED) Nm
axes
5 + Spindel
Drive Capacity - Spindle Motor
41 (40 % ED) / 31 (100 % ED) kW
Operating hours
Steuerung ein 19.381 / Maschine ein 7.220 / Programmlauf 2.285 H
Internal cooling
20 / 40 bar
Holding torque
5.000 Nm
NC rotary table
2.000 kg
Tabletop C-axis

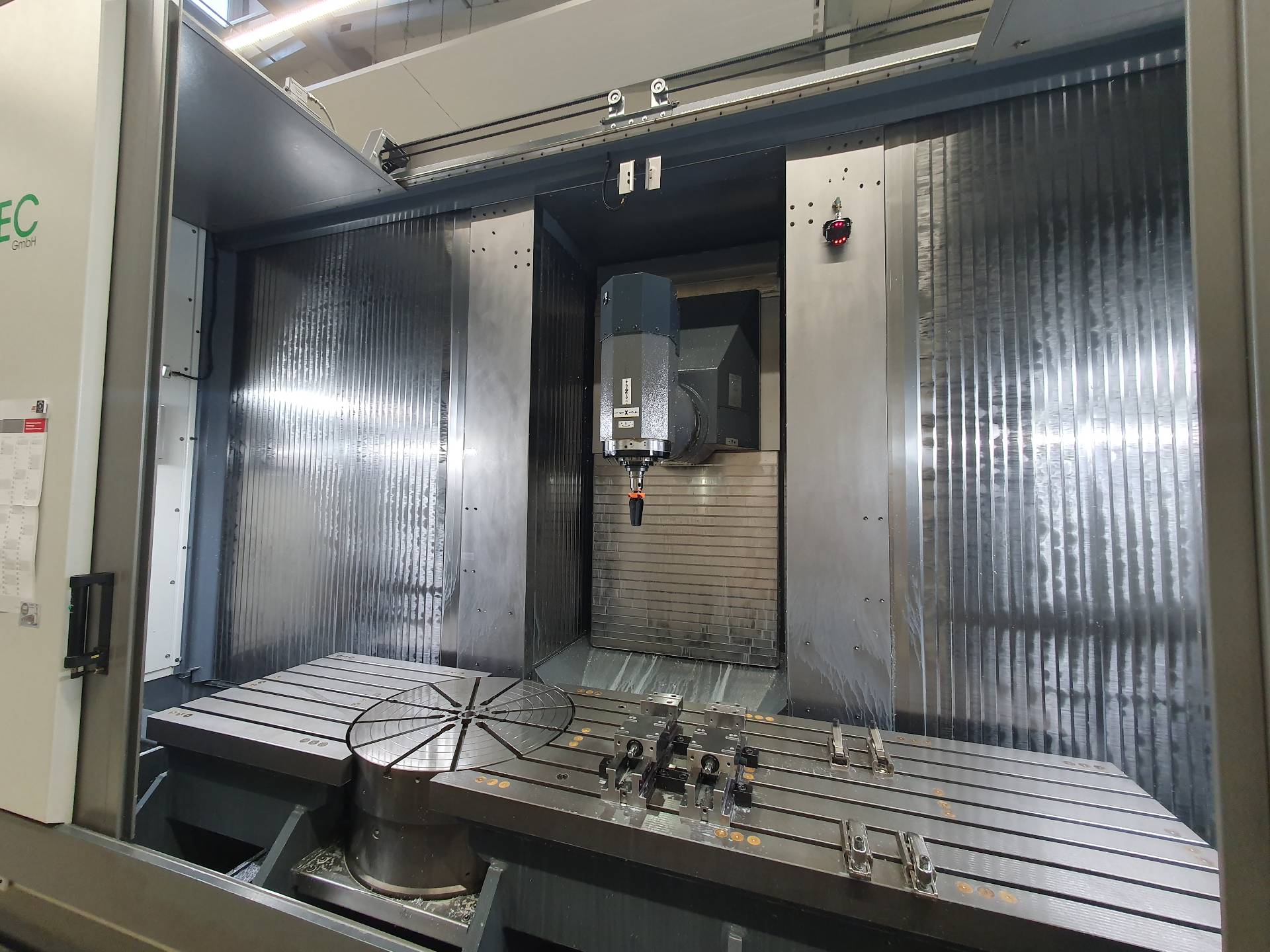

NC-Rundtisch Ø 750 mm, im Maschinentisch eingelassen

Additional information
- NC swivel head, infinitely variable ± 105°, torque drive, swivel radius 250 mm
- Motor spindle HSK-A63, 20 - 15,000 rpm, 41 kW (40 % duty cycle) / 31 kW (100 % duty cycle)
- NC rotary table Ø 750 mm recessed into the machine table (torque drive, max. 700 rpm, indexing accuracy ± 2.5", max. load 2,000 kg)
- Direct measuring system X, Y, Z axes (absolute)
- 50 tool pockets
- Internal coolant supply 20 bar and 40 bar with paper band filter (450 l)
- Hydraulic motor spindle clamping for turning operations
- Partition wall for pendulum (dual-station) machining
- Automatic safety doors
- 3D touch probe with radio transmission
- Renishaw RTS tool setting probe with radio transmission (2 pcs)
- Software option KinematicsOpt incl. calibration ball with holder
- Dynamics package for free-form surfaces
- Collision monitoring SETAC-ADVANCED
- Electronic handwheel (portable)
- Full work area enclosure with roof
- Bellows with steel slats
- Chip conveyor, special version for high-volume machining
- Mechanical air filter CMC 1500 (2 pcs)
- Cooling unit for electrical control cabinet
- Flushing gun
- Central oil lubrication
- LED work area lighting
- Installation elements

The machine can be viewed under power by arrangement.
